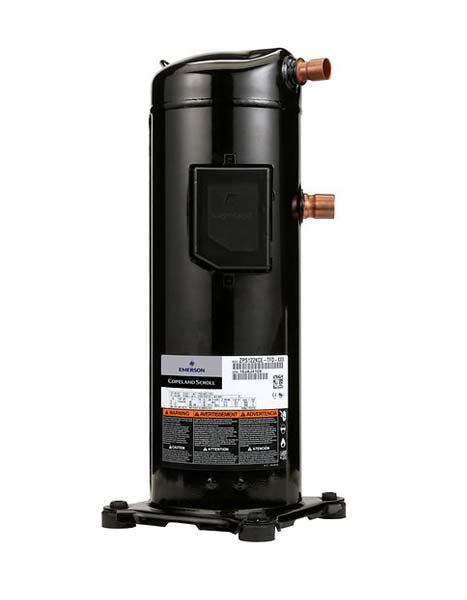

Copeland ZR54K5ETFD Scroll ZR54K5E TFD 3-phase 380-420V 50Hz

Product Description

The COPELAND ZR54K5ETFD compressor is designed for air conditioning applications, utilizing R407C refrigerant. This 3-phase unit operates on 380-420V, 50Hz power, offering a cooling efficiency (EER) of 11.0 and a capacity of 42,700 BTU. With a nominal horsepower of 4.5 and an input power of 3,880 W, it provides reliable performance for HVAC systems. Its displacement is 72.0 cc/Rev.

• Designed for air conditioning applications
• Uses R407C refrigerant
• High cooling efficiency (EER 11.0)

Product Highlights

Efficient 3-phase compressor for air conditioning with R407C refrigerant, 42,700 BTU capacity, and 11.0 EER.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR54K5ETFD

Technical Specifications

• Refrigerant Type: R407C
• Cooling Efficiency EER: 11.0
• Capacity BTU: 42,700
• Input Voltage: 380-420V ; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 4.5
• Capacity (Watts): 12,500
• Input Power (Watts): 3,880
• Current (Amps): 6.6
• COP (W/W): 3.22
• Displacement (cc/Rev): 72.0
• Net Weight (kg): 29.9
• Locked Rotor Amps (LRA): 52.0
• Sound Pressure at 1m (dBA): 59.0
