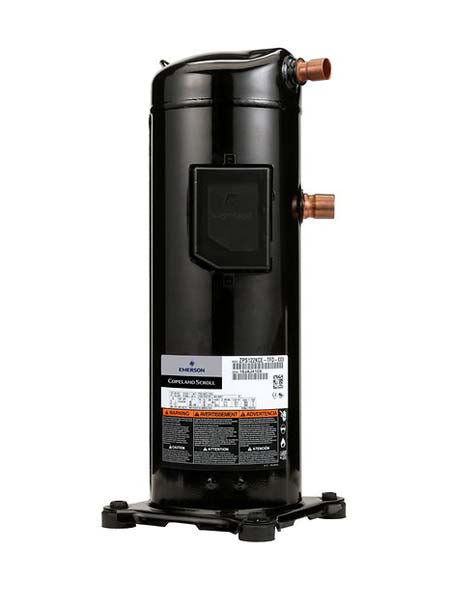

Copeland ZR48K5ETFD Scroll ZR48K5E TFD 380-420V 50Hz 3-Phase

Product Description

The COPELAND ZR48K5ETFD compressor is engineered for air conditioning applications, utilizing R407C refrigerant. This 3-phase unit operates on 380-420V, 50Hz power, delivering a cooling capacity of 38,300 BTU (11,200 W). It features a cooling efficiency (EER) of 11.1 and a nominal horsepower of 4.0. With an input power of 3,450 W and a current of 6.2 A, it provides efficient performance for HVAC systems.

• Designed for air conditioning applications with R407C refrigerant.
• Operates on 380-420V, 50Hz, 3-phase power.
• Provides a cooling capacity of 38,300 BTU with an EER of 11.1.

Product Highlights

This compressor offers 4.0 nominal HP, 11,200 W capacity, and a net weight of 29.1 kg.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR48K5ETFD

Technical Specifications

• Refrigeration Type: R407C
• Cooling Efficiency (EER): 11.1
• Capacity Range (BTU): 38,300
• Voltage: 380-420V ; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal HP: 4.0
• Capacity (W): 11,200
• Capacity (Btu/h): 38,300
• Input Power (W): 3,450
• Current (A): 6.2
• COP (W/W): 3.25
• Displacement (cc/ Rev.): 63.4
• Oil Quantity (l): 1.24
• Net Weight (Kg): 29.1
• LRA (A): 60.0
• Sound Pressure @1m (dBA): 59.0
