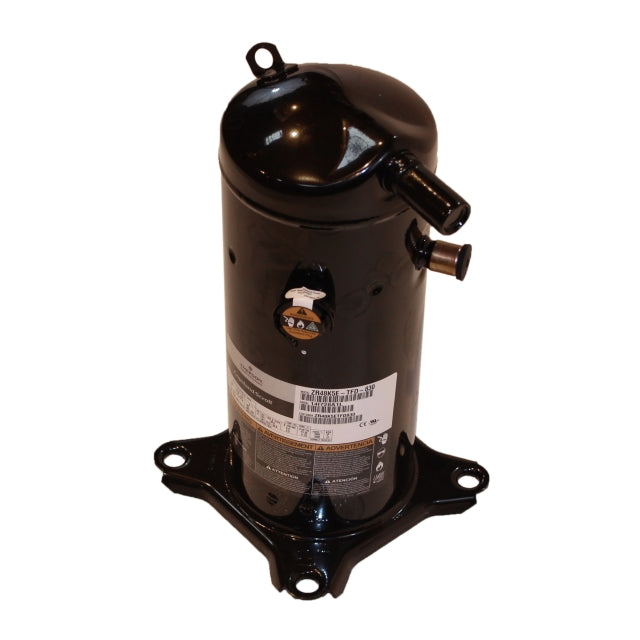

Copeland ZR48K5E-TFD-830 Scroll Compressor 460V 3Ph R22 48200 Capacity

Product Description

The Copeland ZR48K5E-TFD-830 is a three-phase scroll compressor designed for commercial applications. It operates at a voltage of four hundred sixty volts and is suitable for use with R-22 refrigerant. This model can achieve a BTU output of forty-eight thousand two hundred, making it ideal for various cooling needs.

• Voltage: 460VAC
• Rated Load Amps: 15.4
• Compressor Type: Scroll

Product Highlights

This compressor features a hermetic housing and is UL listed for safety. It operates efficiently across a range of temperatures and is built for durability in demanding environments.

Product Information

Standard Information

• Brand: Copeland
• Part Number: ZR48K5E-TFD-830

Technical Specifications

• Weight: 64.2 lbs
• Amps: 7.9
• Phase: Three
• BTU Output: 48,200
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Cycle/Hertz: 50/60 Hz
• Mounting Dimensions: 7.5 x 7.5 x 17.17 inches
• Oil Type: Polyolester (POE)
• Voltage: 380-420/460 VAC
• Sound Level: 73-78 dBA
