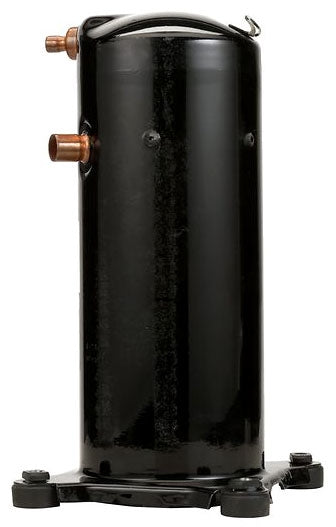

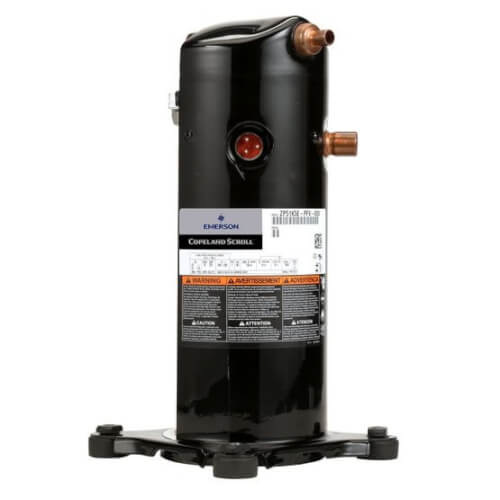

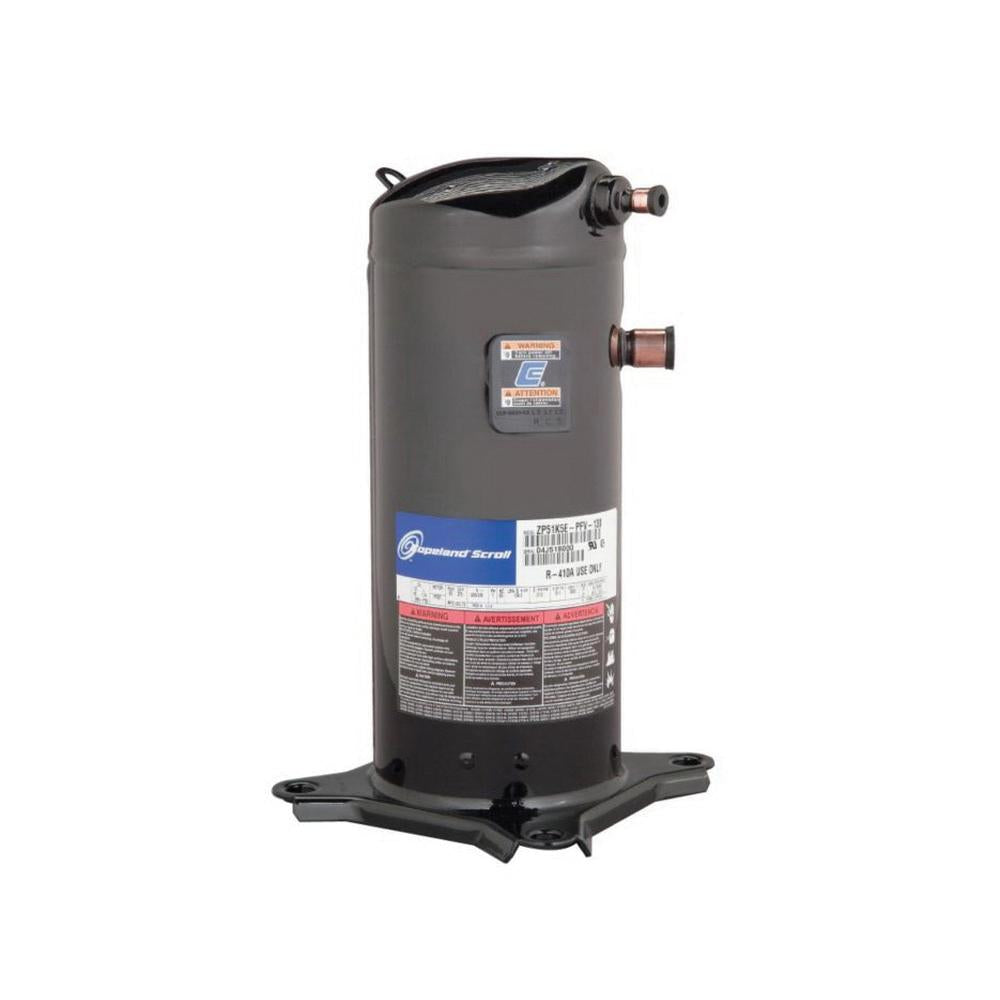

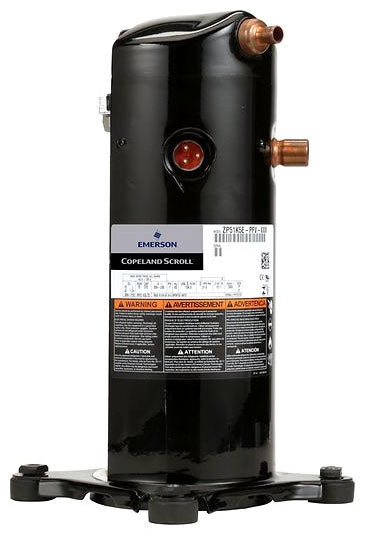

Copeland ZR48K5E-TFD-800 Scroll Compressor 460 V 3-Phase (4 Ton) ZR48K5E-TFD-800

Product Description

Copeland ZR48K5E-TFD-800 is a hermetic scroll compressor rated for 460 VAC three-phase (460/3/60) operation and charged with polyolester (POE) oil for HVACR applications. The unit provides approximately 48,200 BTU capacity with 3.87 in3/rev displacement and supports refrigerants R-134a, R-22, and R-407C. It features internal inherent protection, 7/8" suction stub and stub discharge connections, and a reported sound level of 73–78 dBA.

• Electrical: 380-420/460 VAC (maximum 460 VAC), three-phase, 50/60 Hz; rated load amps (RLA) 7.9, locked rotor amps (LRA) 58.
• Performance: ~48,200 BTU/hr capacity, 3.87 in3/rev displacement (≈469.71 ft3/hr), mass flow ~705 lb/hr, 3500 RPM.

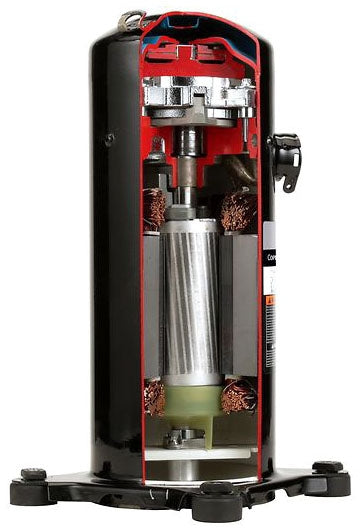

• Construction: Hermetic scroll design with POE oil, internal inherent protection, mounting dimensions 7.50 x 7.50 x 17.17 in, sound level 73–78 dBA.

Product Highlights

460 V hermetic scroll compressor, 48,200 BTU, POE oil, compatible with R-134a/R-22/R-407C; internal protection and 7/8" suction stub.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR48K5E-TFD-800
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• Manufacturer Part Number: ZR48K5E-TFD-800
• Compressor Type: Scroll
• Housing: Hermetic
• Input Voltage: 380-420/460 VAC (maximum 460 VAC)
• Frequency: 50/60 Hz
• Phase: Three
• Rated Load Amps (RLA): 7.9
• Minimum Circuit Ampacity (MCA): 7.9
• Locked Rotor Amps (LRA): 58
• Motor Type: General 3 lead single voltage
• RPM: 3500
• Power Rating: 4170 W (4 hp)
• Displacement: 3.87 in^3/rev (469.71 ft^3/hr)
• Capacity (BTU/hr): 48,200
• Tonnage: 4 ton
• Mass Flow: 705 lb/hr
• Oil Type: Polyolester (POE)
• Initial Oil Charge: 42 oz
• Oil Recharge: 34 oz
• Refrigerant Compatibility: R-134a; R-22; R-407C
• Suction Connection: 7/8" stub
• Discharge Connection Type: Stub
• Sound Level: 73-78 dBA
• Protection: Internal inherent protection
• UL Listed: Yes
• Prop 65: Yes
• Mounting Dimensions: 7.50 x 7.50 x 17.17 in
• Dimensions (L x W x H): 9.69 x 9.69 x 16.42 in
• Unit Weight: 64.2 lb
• Application: HVACR, air conditioning and refrigeration
• Country of Origin: US
• Evaporating Temperature (typical): 45 °F (7.22 °C)
• Return Gas Temperature (typical): 65 °F (18.33 °C)
