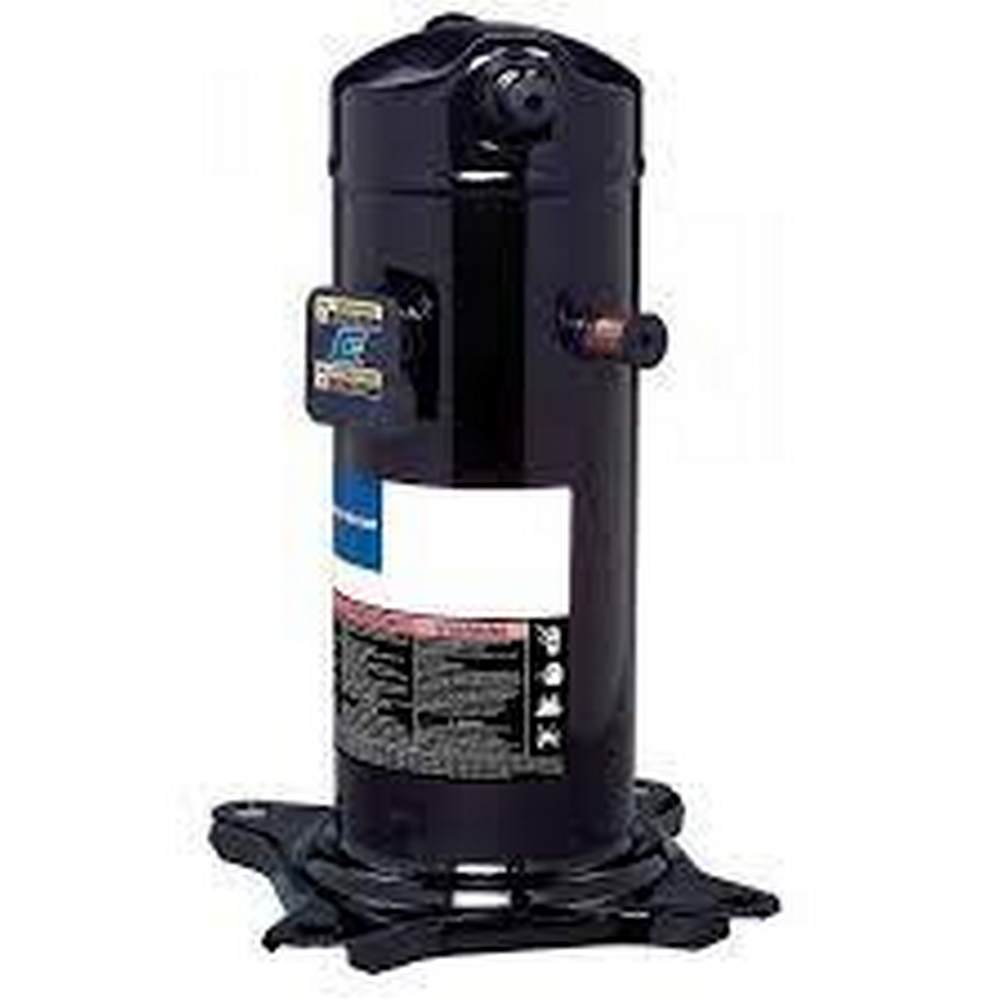

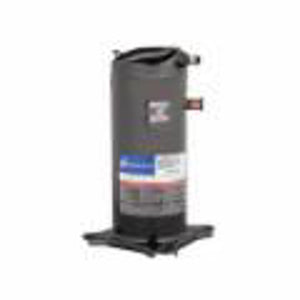

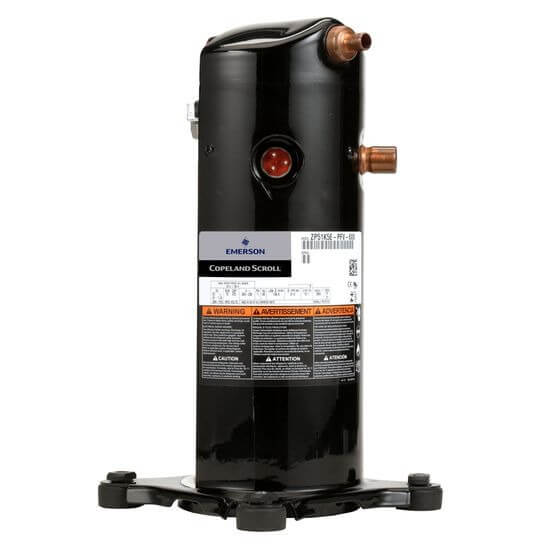

Copeland ZR48K5E-TF5-800 3 PH, R407C AC Compressor, 46800 BTU (230V), replacement for 68J66
In Stock - Ships via Freight in 3-5 Business Days
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
H Cooling 4160 W R22 HCFC 11.6 EER 200/230 V 60 Hz 3 Phase 12 A 7/8 Inch Stub Suction Line 1/2 Inch Stub Discharge Line POE Compressor Oil 73 d
BA 7.5 Inch L x 7.5 Inch W x 17.17 Inch H Mount 9.69 Inch L x 9.69 Inch W x 16.94 Inch H Includes: Molded Plug Service
• 3500 Rpm
• Quiet reliable operation optimized scroll and seal design
• High efficiency motor
• Improved temperature protection
• Larger shaft bearing system
• Internal pressure protection
• New shutdown solution
• Redesigned shell
• Molded plug connection
• Btu/hr ratings are based on 45 deg F evaporating temperature 130 deg F condensing temperature 65 deg F return gas temperature and 95 deg F ambient temperature and 115 deg F liquid temperature
• 42 oz initial oil charge
• 705 lbs/hr mass flow
• 34 oz oil recharge
Standard/Approvals: UL SA2337Application: Air Conditioning
