Copeland zr38k5etfd scroll zr38k5e tfd 380-420v 3-phase 30000 btu

Product Description

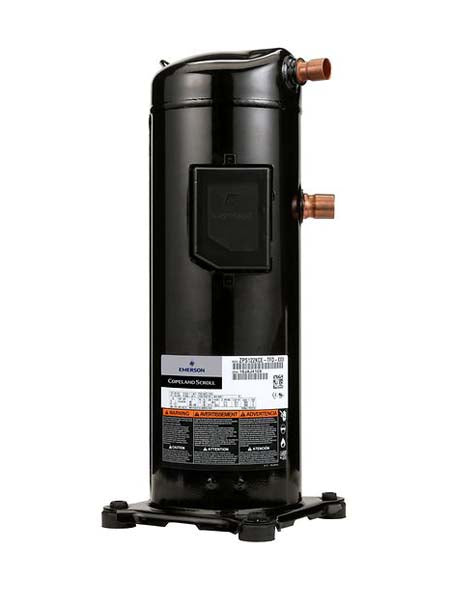

The COPELAND ZR38K5ETFD is a scroll compressor designed for air conditioning applications, utilizing R407C refrigerant. This 3-phase unit operates at 380-420V, 50Hz, delivering a cooling capacity of 30,000 BTU (8,800 W). It features a high cooling efficiency (EER 10.4) and an input power of 2,900 W, making it suitable for various HVAC systems requiring reliable performance.

• R407C Refrigerant Type
• High Cooling Efficiency (EER 10.4)
• 30,000 BTU Capacity

Product Highlights

Efficient 3-phase scroll compressor for R407C air conditioning systems.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR38K5ETFD

Technical Specifications

• Refrigerant Type: R407C
• Input Voltage: 380-420V; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 3.2
• Capacity (Watts): 8,800
• Capacity (BTU/hr): 30,000
• Input Power (Watts): 2,900
• Current (Amps): 5.4
• COP (W/W): 3.03
• EER (BTU/Wh): 10.4
• Displacement (cc/Rev): 50.9
• Oil Quantity (Liters): 1.24
• Net Weight (kg): 27.5
• Locked Rotor Amps (LRA): 47.0
• Sound Pressure at 1m (dBA): 59.0
