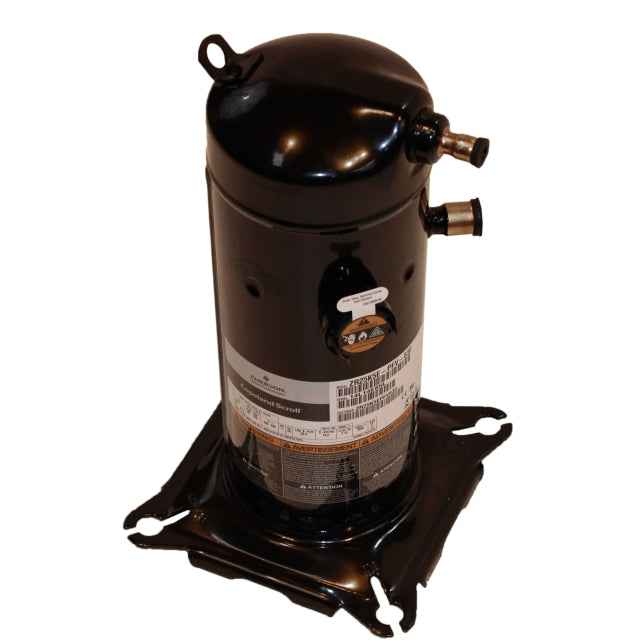

Copeland ZR25K5E-PFV-830 Copeland Scroll Compressor High Temperature 25000 Btu 208/230-1-60

Product Description

The Copeland ZR25K5E-PFV-830 is a scroll compressor designed for high temperature applications. This single-phase compressor operates at a voltage of two hundred eight to two hundred thirty volts AC. It efficiently produces an output of twenty-five thousand BTUs and is compatible with R-22 refrigerant.

• Voltage: 208/230 VAC
• Weight: 50.1 lbs
• BTU Output Range: 24,300 to 32,800

Product Highlights

This compressor offers reliable performance for cooling applications. It features a hermetic design and operates smoothly at 60 Hz. The internal inherent protection ensures safety during operation.

Product Information

Standard Information

• Brand: Copeland
• Phase: Single

Technical Specifications

• Weight: 50.1 lbs
• Amps: 6.7-10.4
• BTU Output: 24,300-32,800
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Cycle/Hertz: 60 Hz
• Mounting Dimensions: 7.5 x 7.5 x 16.08 inches
• Oil Type: Polyolester (POE)
• Voltage: 208-230 VAC
• Refrigerant: R-134a; R-22; R-407C
• Height: 15.86 inches
• Length: 9.5 inches
• Width: 9.5 inches
• Country of Origin: USA
