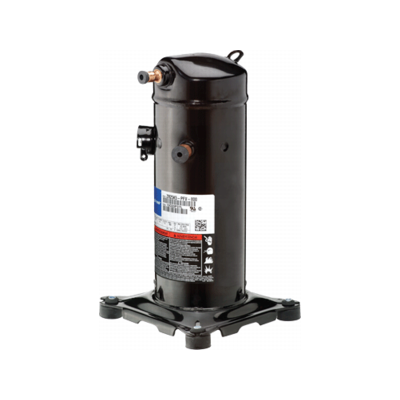

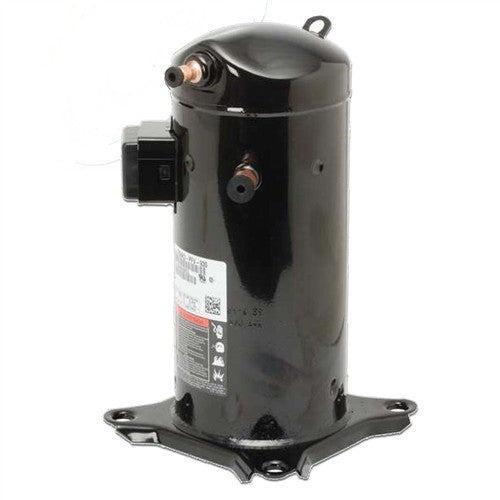

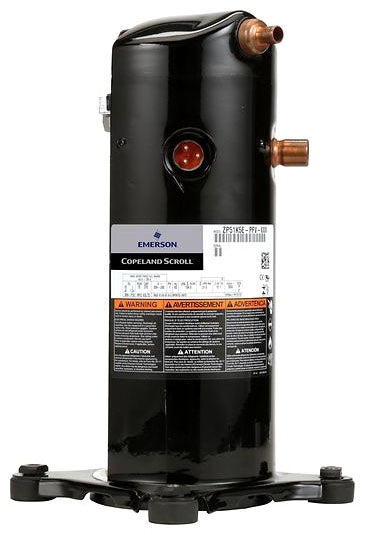

Copeland ZR25K5E-PFV-800 scroll compressor 24,300-32,800 BTU (9.5 x 9.5 x 15.86 in) ZR25K5EPFV800

Product Description

Copeland ZR25K5E-PFV-800 is a hermetic Copeland scroll compressor rated for 208-230 VAC, single-phase, 60 Hz operation and charged with polyolester (POE) oil. It delivers 24,300–32,800 BTU capacity with suction 3/4 in and stub discharge connections, internal inherent protection, and 68–73 dBA sound levels. The unit is intended for HVACR air conditioning and refrigeration applications using R-134a, R-22, or R-407C refrigerants.

• Electrical: 208-230 VAC, single phase, 60 Hz; operating amps 6.7–10.4 A; locked rotor 68 A
• Refrigerants and oil: Compatible with R-134a, R-22, R-407C; uses polyolester (POE) oil with initial oil charge 25 oz
• Physical and connectors: Dimensions 9.5 x 9.5 x 15.86 in; mounting 7.5 x 7.5 in; suction 3/4 in stub and 1/2 in discharge stub

Product Highlights

Hermetic Copeland scroll compressor, 208-230 VAC single-phase, 24,300–32,800 BTU capacity

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR25K5E-PFV-800
• Country of Origin: USA

Technical Specifications

• MPN: ZR25K5E-PFV-800
• Brand: Copeland
• Product Type: Compressor
• Compressor Type: Scroll
• Housing: Hermetic
• Input Voltage: 208-230 VAC
• Phase: Single
• Frequency: 60 Hz
• Power: Approximately 2 HP
• Capacity (BTU/hr): 24,300 - 32,800 BTU/hr
• Amps: 6.7 - 10.4 A (operating)
• Locked Rotor Amps (LRA): 68 A
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 25 oz
• Refrigerant: R-134a; R-22; R-407C
• Suction Line Size: 3/4 in (stub)
• Discharge Line Size: 1/2 in (stub)
• Connection Type: Stub / sweat options
• Mounting Dimensions: 7.5 x 7.5 in
• Dimensions (L x W x H): 9.5 x 9.5 x 15.86 in
• Weight: 50.1 lb
• Sound Level: 68 - 73 dBA
• Protection: Internal inherent protection
• UL Listed: Yes
• Application: HVACR / air conditioning
