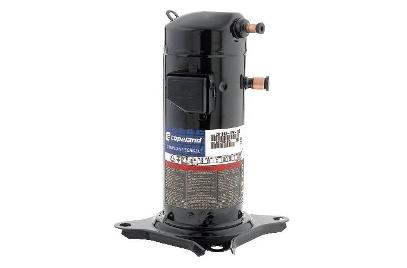

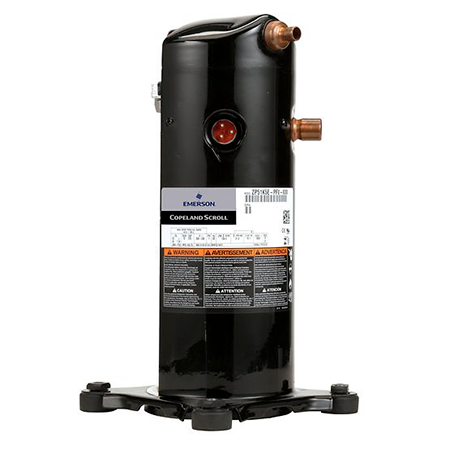

Copeland ZR25K5E-PFJ-800 Scroll Compressor

Product Description

The Copeland ZR25K5E-PFJ-800 is a scroll compressor for air conditioning systems, compatible with R22 and R407C refrigerants. This product compresses refrigerant gas to enhance cooling efficiency in the system. It has a three-quarter inch suction connection and a half-inch discharge connection. A capacitor is required for operation but is not included.

• Designed for air conditioning applications
• Requires a capacitor for operation (not included)
• Compatible with R22 and R407C refrigerants

Product Highlights

This compressor is ideal for high-temperature air conditioning units, with a rated cooling capacity of twenty-five thousand three hundred BTUH. It is engineered for reliable performance in heating and cooling cycles.

Product Information

Standard Information

• Brand: Copeland
• Manufacturer Part Number: ZR25K5E-PFJ-800

Technical Specifications

• Application: A/C, High Temperature
• Refrigerant: R22, R407C
• Capacity (BTUH): 25300
• Voltage: 265-277/1
• Voltage Range: 220 to 265V
• Frequency: 60 Hz
• Number of Phases: Single-Phase
• Horsepower: 2
• Connection Type: Sweat
• Connection Suction (In.): 3/4 S
• Suction Connection Size: 3/4
• Suction Conn.: 3/4 ODF
• Connection Discharge (In.): 1/2 S
• Discharge Connection Size: 1/2
• Discharge Conn.: 1/2 ODF
• Liquid Line Size: 1/2
• Oil Type: POE (Polyol Ester)
• Oil Recharge (Oz.): 19
• Rated Load Amps: 12.1
• Run Capacitor (Microfarad x Voltage): 35 x 440
• Displacement (CFH): 252.6567
• Displacement (In³/Rev): 2.079
• Mount (In.): 7.5 x 7.5
• Height (In.): 15.86
• Country of Origin: US
