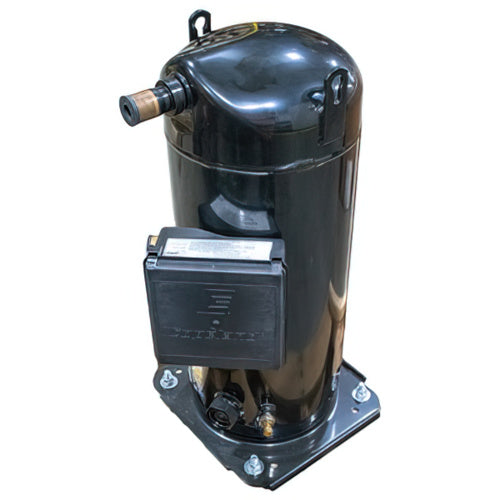

Copeland ZR250KCE-TED-951 Aftermarket Hermetic Scroll Compressor 460/3/60

COPELAND
Brand: COPELAND
SKU: ZR250KCE-TED-951
Availability: In Stock

Ships via freight in 1-3 business days

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$14,328.89
$14,328.89
LTL Delivery

This product weighs 307 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The COPELAND ZR250KCE-TED-951 is an aftermarket hermetic scroll compressor designed for HVACR applications. Operating on 460/3/60 power, it utilizes Polyol Ester (POE) oil and offers a BTU output of 250,000. This compressor is compatible with R-134a, R-22, and R-407C refrigerants, providing efficient and reliable performance for air conditioning and refrigeration systems. Its design features contribute to improved sound levels and better liquid handling.

  • Features 70 percent fewer moving parts for enhanced reliability.
  • Capable of starting under any system load without requiring start components.
  • Axial and radial compliance allow scroll members to separate in the presence of liquid refrigerant, protecting against damage.

Product Highlights

Engineered for optimum performance with today's chlorine-free refrigerants, offering superior efficiency and proven reliability.

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZR250KCE-TED-951
  • Country of Origin: USA

Technical Specifications

  • Amperage: 27.5-30.6
  • BTU Output: 250000
  • Compressor Housing: Hermetic
  • Compressor Type: Scroll
  • Frequency: 50/60 Hz
  • Discharge Connection Type: Stub
  • Evaporating Temperature: 35°F, 45°F (7.22°C)
  • Locked Rotor Amperage (LRA): 225
  • Mass Flow: 3660 lbs./hr.; 3070 lbs./hr.
  • Initial Oil Charge: 158 oz
  • Oil Type: Polyolester (POE)
  • OPT Code: ZR250KCETED951
  • Phase: Three
  • Protection: External Enhanced
  • Rated Load Amperage (RLA): 30.1, 33.6
  • Refrigerant: R-134a; R-22; R-407C
  • Return Gas Temperature: 55°F, 65°F (18.33°C)
  • Sound Level: 88-93 dBA
  • Suction Line Fitting Type: Stub
  • Suction Line Size (OD): 1 5/8 inches
  • UL Listed: Yes
  • Input Voltage: 380-420/460 VAC
  • Ratings: ASRAE ARI
  • Tonnage: 20 Ton
  • Application: Air Conditioning
  • Discharge Connection Size: 1 3/8 inches S
  • Country of Origin: US
  • Displacement (CFH): 2410.993
  • Displacement (In³/Rev): 19.839
  • Horsepower: 20
  • Connection Type: Sweat
