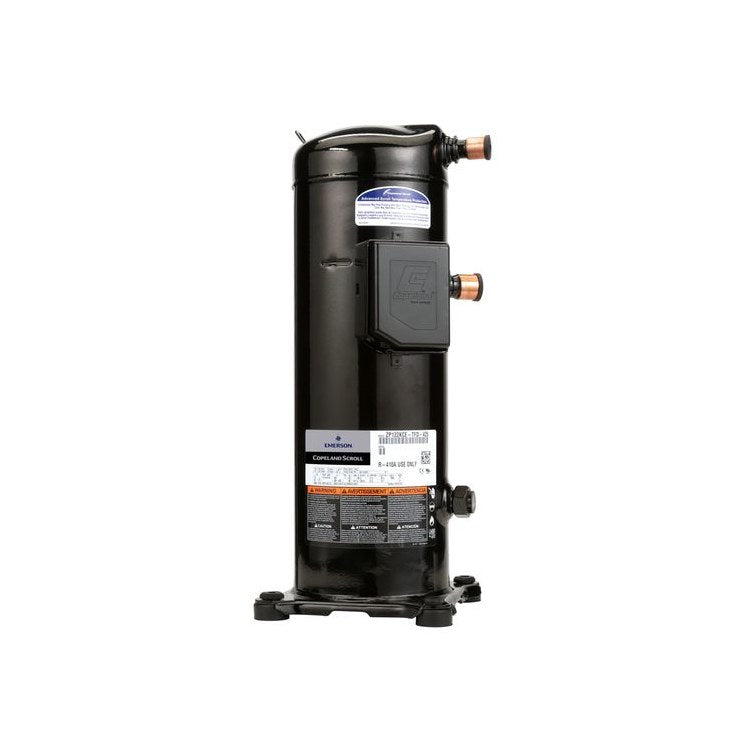

Copeland ZR19M3E-TWC-961 Hermetic Scroll Compressor 208-230/3/60

Product Description

The COPELAND ZR19M3E-TWC-961 is a hermetic scroll compressor designed for HVACR applications. Copeland Scroll compressors are known for their superior efficiency and proven reliability. This compressor is engineered for optimum performance with chlorine-free refrigerants and better liquid handling. It operates at lower sound and vibration levels than traditional compressors.

• Superior efficiency
• Proven reliability
• Easy installation

Product Highlights

This hermetic scroll compressor is suitable for air conditioning applications using R-22, R-407C and R-134a refrigerants.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR19M3E-TWC-961
• Country of Origin: USA

Technical Specifications

• Amps: 29.6-35.7
• Brand: Copeland
• BTU Output: 103000
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Cycle/Hertz: 50/60 Hz
• Discharge Connection Type: Rotolock
• Evaporating Temperature: 45°F (7.22°C)
• Locked Rotor Amps (LRA): 425
• Mass Flow (lbs/hr): 2000 lbs./hr.
• Maximum Voltage: 230 VAC
• Oil Charge Initial (oz.): 140
• Oil Type: Polyolester (POE)
• OPT Code: ZR19M3ETWC961
• Phase: Three
• Prop 65: Yes
• Protection: External Electronic Protection
• Rated Load Amps (RLA): 55
• Refrigerant: R-134a; R-22; R-407C
• Return Gas Temperature: 65°F (18.33°C)
• Sound Level (dBA): 83-88
• Suction Line Fitting Type: Rotolock
• Suction Line Size (OD): 2 1/4"
• UL Listed: Yes
• Voltage: 200/208-230 VAC
• Minimum Circuit Ampacity (MCA): 55
• Country of Origin: USA
• Motor Type: General 3 Lead Single Voltage
• Overload Type: Internal
• Displacement (CFH): 1822.433
• Displacement (In³/Rev): 14.996
• Horsepower: 15
• Oil: Polyol Ester
• Application: A/C
• Capacity (BTUH): 185000
• Connection Discharge (In.): 1 3/4 RL
• Connection Suction (In.): 2 1/4 RL
• Height (In.): 23.30
• Manufacturer Name: COPELAND LP
• Manufacturer Part #: ZR19M3E-TWC-961
• Alt Part #: ZR19M3ETWC961
• Cooling Capacity: 190000BTU
• Tonnage: 15 Ton
• BTU/hr: 190,000
• Refrigerant Oil Type: Polyol Ester (POE)
• Frequency: 50Hz, 60Hz
• Liquid Line Size: 1 3/4 in
• Motor Phase: 3
• Oil Capacity: 0 ml
• Oil Recharge: 6.85 pints
• Shell Height: 23.3 in
• Technology: Scroll
• Type: Herm
• Compressor Capacity: 19000 btu
• CFM: 30.3706
• Discharge Connection: Rotalock
• Discharge ID: 1/4"
• Line Voltage (60Hz): 240V
• Mounting Arrangement: X
• Rated Voltage (60Hz): 208/230
• Variety Type: Scroll
• LRA: 425.0
• Max RLA: 55.0
• Run Capacitor: N/A
