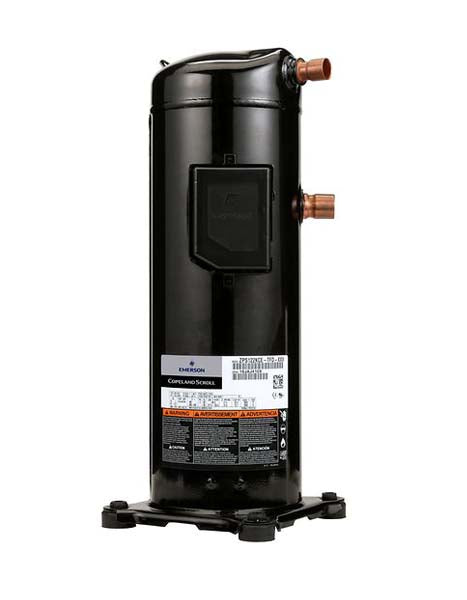

Copeland ZR144KCETFD scroll compressor 12.0 hp 118,000 btu 380-420v

Product Description

The Copeland ZR144KCETFD Scroll compressor is designed for air conditioning applications, operating on 380-420V, 50Hz, 3-phase power. This 12.0 HP compressor utilizes R407C refrigerant and provides a cooling capacity of 118,000 BTU. It features an EER of 11.6, making it suitable for efficient climate control systems. With a net weight of 61.2 Kg, it is engineered for reliable performance in commercial and industrial air conditioning units.

• Refrigeration Type: R407C
• Cooling Efficiency (EER): 11.6
• Capacity Range: 118,000 BTU

Product Highlights

Efficient 12.0 HP scroll compressor for air conditioning, featuring R407C refrigerant and 118,000 BTU cooling capacity.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR144KCETFD

Technical Specifications

• Refrigeration Type: R407C
• Cooling Efficiency (EER): 11.6 Btu/Wh
• Cooling Capacity: 118,000 BTU
• Voltage: 380-420V
• Frequency: 50Hz
• Phase: 3
• Application: Air conditioning
• Nominal Horsepower: 12.0 HP
• Capacity (Watts): 34,500 W
• Input Power: 10,150 W
• Operating Current: 17.7 A
• Coefficient of Performance (COP): 3.40 W/W
• Displacement: 190.9 cc/Rev
• Oil Quantity: 3.25 l
• Net Weight: 61.2 Kg
• Locked Rotor Amps (LRA): 118.0 A
• Sound Pressure Level: 64.0 dBA @1m
