Copeland ZR125KCETFD Scroll 10.4 HP

Product Description

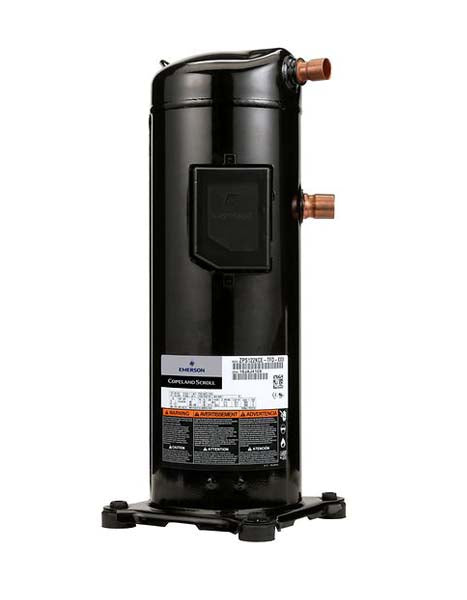

The COPELAND ZR125KCETFD is a Scroll compressor designed for air conditioning applications. Operating with R134a refrigerant, this 10.4 nominal horsepower unit delivers a cooling capacity of 20,500 Watts (70,000 Btu/h) with an input power of 6,150 Watts. It features a 3-phase power supply at 380-420V, 50Hz, making it suitable for various industrial and commercial air conditioning systems requiring efficient and reliable performance.

• Designed for R134a refrigerant, ensuring compatibility with common air conditioning systems.
• Provides a nominal 10.4 HP with a cooling capacity of 20,500 W (70,000 Btu/h).
• Operates on a 3-phase, 380-420V, 50Hz power supply for robust performance.

Product Highlights

Efficient scroll compressor for air conditioning with 10.4 HP and R134a compatibility.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR125KCETFD

Technical Specifications

• Refrigerant Type: R134a
• Input Voltage: 380-420V ; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 10.4
• Cooling Capacity (W): 20,500
• Cooling Capacity (Btu/h): 70,000
• Input Power (W): 6,150
• Operating Current (A): 12.2
• COP (W/W): 3.34
• EER (Btu/Wh): 11.4
• Displacement (cc/rev): 167.2
• Oil Quantity (L): 3.25
• Net Weight (kg): 61.2
• Locked Rotor Amps (A): 118.0
• Sound Pressure @ 1m (dBA): 63.0
