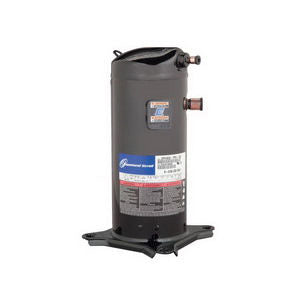

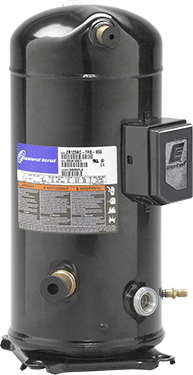

Copeland ZR125KCE-TFD-965 Scroll Compressor 125000 BtuH Cooling R-407C HFC

Product Description

The Copeland ZR125KCE-TFD-965 is a scroll compressor designed for cooling applications with a capacity of 125,000 BtuH. Operating at a voltage of 460 volts, it is suitable for three-phase 60 Hz systems. The unit utilizes R-407C refrigerant and includes essential features for efficient operation.

• Power Rating: 10850 W
• Sound Level: 80 dBA
• Mounting dimensions: 7.5 inches by 7.5 inches

Product Highlights

This compressor is ideal for air conditioning systems, particularly in commercial settings. Its robust design ensures reliability and efficiency.

Product Information

Standard Information

• Manufacturer: Copeland
• Model Number: ZR125KCE-TFD-965

Technical Specifications

• Cooling Capacity: 125000 BtuH
• Voltage Rating: 460 V, 60 Hz
• Phase: Three
• Refrigerant Type: R-407C
• Amperage Rating: 16.3 A
• Suction Line Size: 1-3/8 Inch Stub
• Discharge Line Size: 7/8 Inch Stub
• Compressor Oil: POE
• EER Rating: 11.6
• Dimensions: 10.38 inches L x 11.23 inches W x 21 inches H
