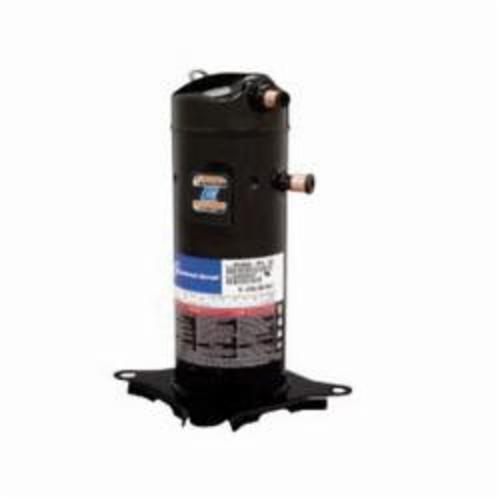

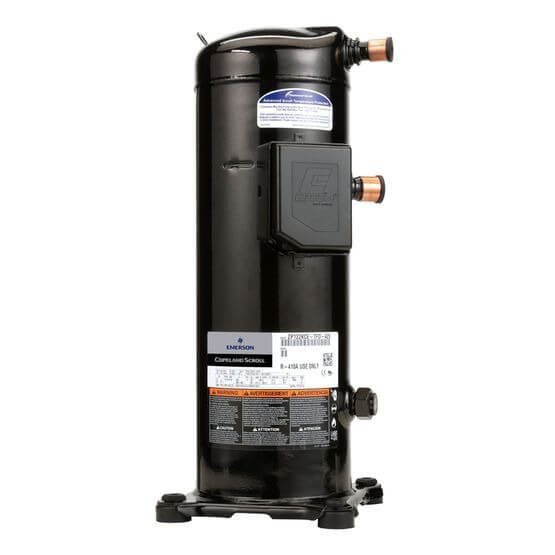

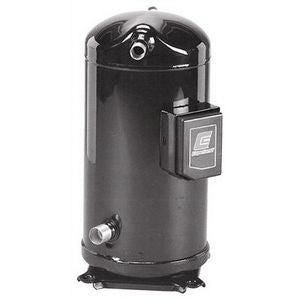

Copeland ZR125KCE-TF5-950 Three Phase Scroll Compressor 125000 BTU/Hr R-22

Product Description

The Copeland ZR125KCE-TF5-950 is a three-phase scroll compressor designed for efficient cooling in commercial and industrial HVAC applications. It provides a nominal capacity of one hundred twenty-five thousand BTU per hour, suitable for systems using R-22, R-407C, or R-134A refrigerants. This compressor operates on a voltage range of two hundred eight to two hundred thirty VAC.

• Three-phase operation for high efficiency
• Nominal cooling capacity of one hundred twenty-five thousand BTU/h
• Compatible with multiple refrigerants including R-22, R-407C, and R-134A

Product Highlights

This compressor features internal motor protection and is designed for low noise and vibration operation, enhancing its reliability and efficiency.

Product Information

Standard Information

• Brand: Copeland
• Phase: Three

Technical Specifications

• Nominal Capacity: 125000 BTU/hr
• Voltage Rating: 208 to 230 VAC
• Compressor Oil: 3MA POE
• Amperage Rating: 29.5 to 32.6 A, 239 A Locked Rotor
• Suction Line Size: 1-3/8 in
• Discharge Line Size: 7/8 in
• Dimensions: 264 mm Length x 285 mm Width x 533 mm Height
