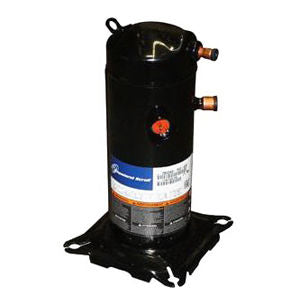

Copeland ZR11M3E-TWD-961 ZR High Temperature Scroll Compressor 9 Ton R-22 HCFC

Product Description

The Copeland ZR11M3E-TWD-961 is a high temperature scroll compressor designed for efficient operation in air conditioning systems. This compressor provides a cooling capacity of 108000 BtuH and operates with a power rating of 9600 W. It is suitable for R-22 and HCFC refrigerants and features a nominal capacity of 9 tons. The unit is built for robust performance with an EER of 11.3.

• Cooling capacity of 108000 BtuH
• Power rating of 9600 W
• Dimensions: 12.57 inches L x 14.06 inches W x 21.17 inches H

Product Highlights

The compressor is designed with a 1-3/8 inch stub suction line and a 7/8 inch stub discharge line. It also includes internal line break overload for motor protection, ensuring reliability during operation. The unit operates at a sound level of 81 dBA.

Product Information

Standard Information

• Brand: Copeland
• Manufacturer Part Number: ZR11M3E-TWD-961

Technical Specifications

• Type: High Temperature
• Voltage Rating: 460 V, 60 Hz, 3 Phase
• Amperage Rating: 14.35 A
• Compressor Oil: POE
• Sound Level: 81 dBA
• Mounting Type: 8.65 inches L x 8.65 inches W x 21.4 inches H
• Suction Line Size: 1-3/8 inch stub
• Discharge Line Size: 7/8 inch stub
