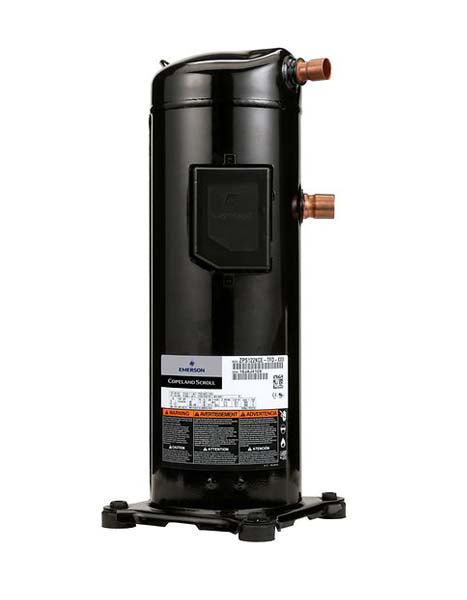

Copeland zr108kcetfd scroll 9.0 hp 380-420v 50hz 3-phase

Product Description

The COPELAND ZR108KCETFD is an air conditioning compressor designed for R407C refrigerant. It operates on a 3-phase, 380-420V, 50Hz power supply, delivering a cooling capacity of 88,100 BTU with a nominal horsepower of 9.0. This scroll compressor offers an EER of 11.6 and an input power of 7,580W, making it suitable for various air conditioning applications.

• Designed for R407C refrigerant
• Cooling Efficiency (EER) of 11.6
• Capacity of 88,100 BTU

Product Highlights

Efficient 9.0 HP scroll compressor for R407C air conditioning systems.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR108KCETFD

Technical Specifications

• Refrigeration Type: R407C
• Input Voltage: 380-420V 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 9.0
• Capacity (Watts): 25,800
• Capacity (BTU/h): 88,100
• Input Power (Watts): 7,580
• Current (Amps): 13.8
• COP (W/W): 3.40
• EER (BTU/Wh): 11.6
• Displacement (cc/Rev): 142.9
• Oil Quantity (Liters): 3.25
• Locked Rotor Amps (LRA): 111.0
• Sound Pressure @ 1m (dBA): 63.0
