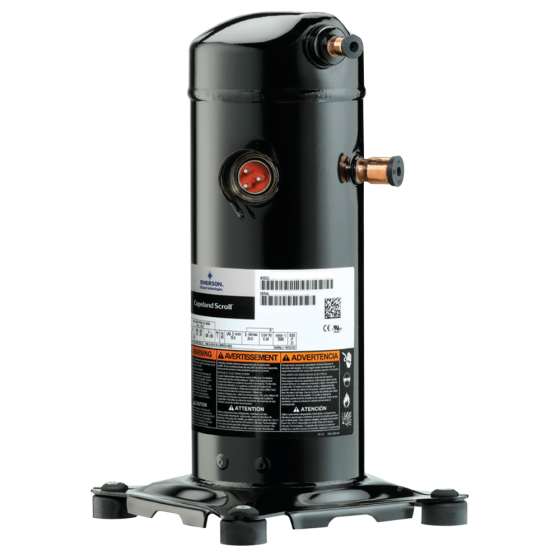

Copeland ZPS51LXE-TF5-800 Scroll Compressor

Product Description

The Copeland ZPS51LXE-TF5-800 is a hermetic scroll compressor ideal for HVAC and refrigeration systems. It works with R410A refrigerant and uses polyol ester oil for efficient lubrication. The three-phase power supply operates within a voltage range of two hundred to two hundred thirty volts. This compressor compresses refrigerant gas, increasing its pressure and temperature to support effective heat exchange in various cooling applications.

• Compressor type: Scroll
• Refrigerant: R410A
• Oil type: Polyol Ester

Product Highlights

The compressor is designed for reliable performance in air conditioning and refrigeration units, ensuring an effective heat transfer process.

Product Information

Standard Information

• Manufacturer: Copeland
• Part Number: ZPS51LXE-TF5-800

Technical Specifications

• Compressor Type: Scroll
• Application: A/C
• Voltage: 200-230/60/3
• Phase: 3
• BTU Rating: 51 to 55kBTU
• Capacity (BTUH): 52100
• Horsepower: 4 1/4
• Rated Load Amps: 18.4
• Displacement (CFH): 359.72
• Displacement (In³/Rev): 2.96
• Connection Discharge (In.): 1/2 S
• Connection Suction (In.): 7/8 S
• Mount (In.): 7.5 x 7.5
• Height (In.): 16.94
• Operating Weight (lbs): 80
• Exterior Dimensions (D) (inches): 11
• Exterior Dimensions (W) (inches): 11
• Exterior Dimensions (H) (inches): 20
