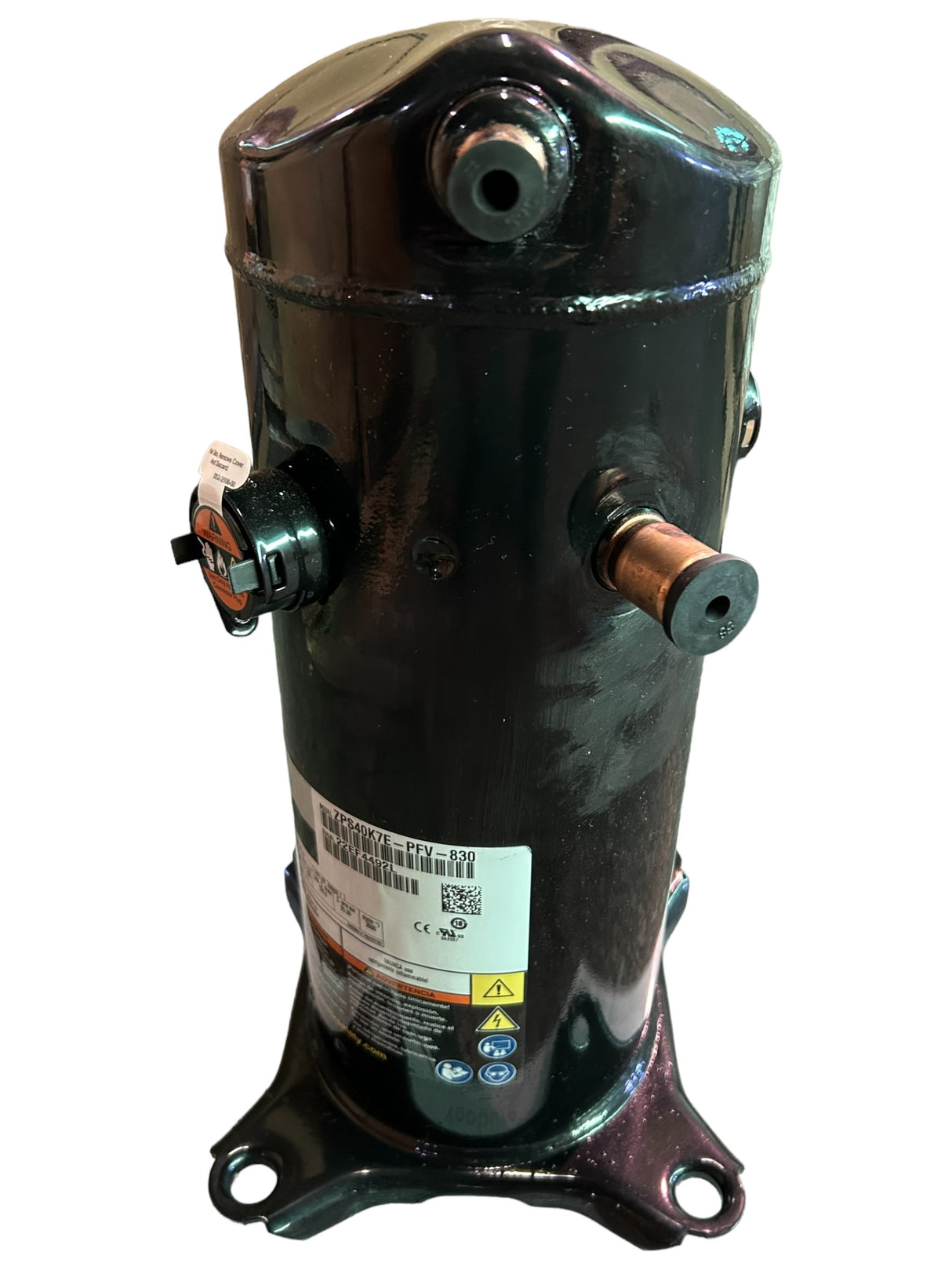

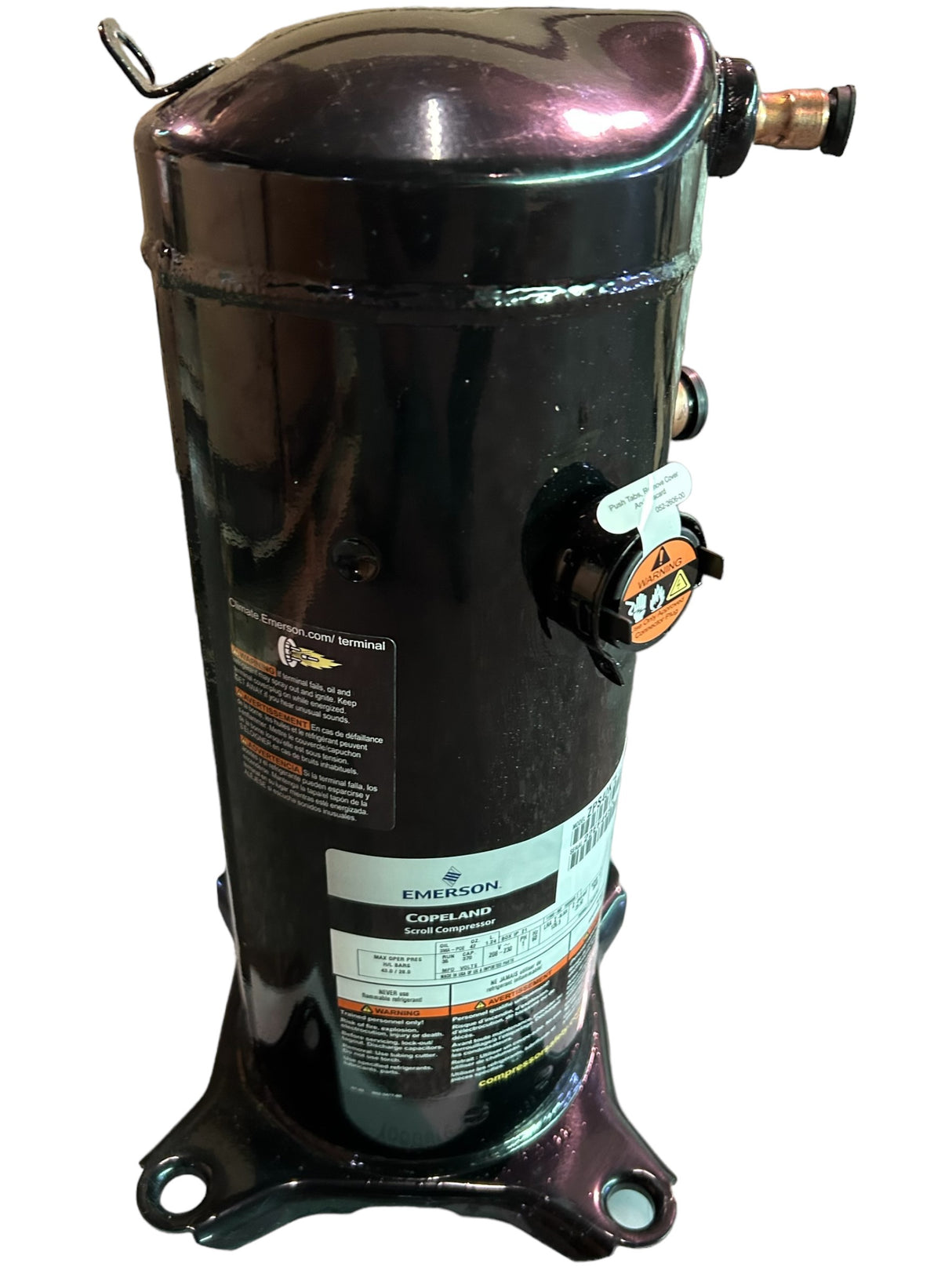

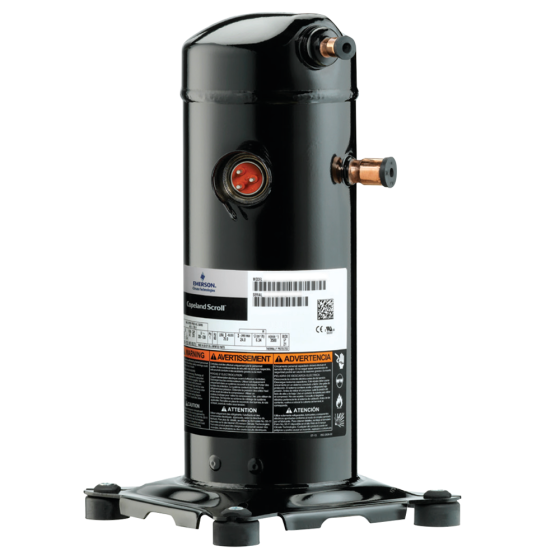

Copeland ZPS40K7E-PFV-830 Compressor 40000 BTU R-410A 208/230

Product Description

The Copeland ZPS40K7E-PFV-830 compressor provides reliable heating and cooling solutions. This unit handles an output of 40000 BTU and operates efficiently with R-410A refrigerant. This compressor is suited for both residential and commercial applications with a voltage rating of 208/230.

• Efficient performance with 40000 BTU output
• Compatible with R-410A refrigerant
• Designed for use in both residential and commercial environments

Product Highlights

This Copeland compressor offers proven performance and durability, making it ideal for various HVAC systems.

Product Information

Standard Information

• Brand: Copeland

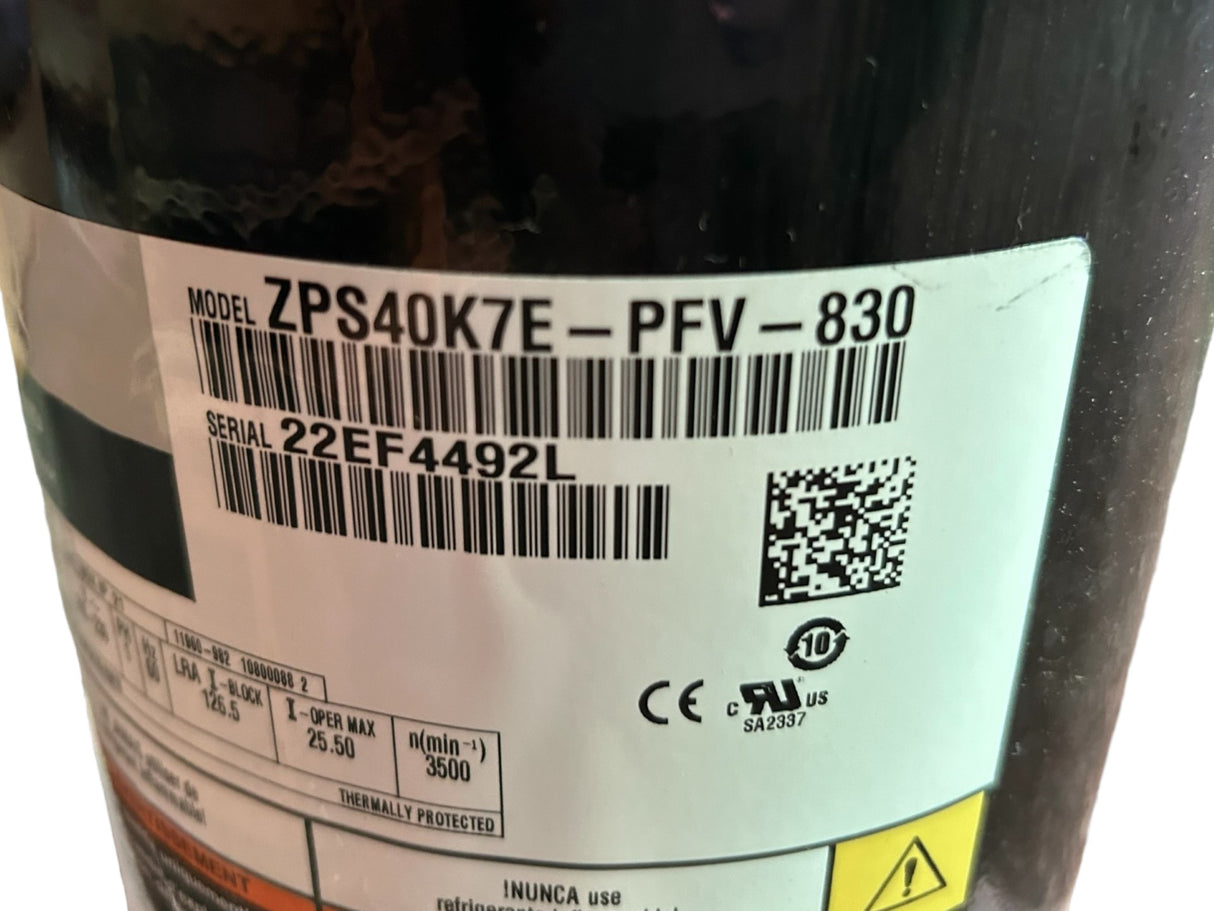

• MPN: ZPS40K7E-PFV-830

Technical Specifications

• Dimensions Length: 9.69 inches
• Dimensions Width: 9.69 inches
• Dimensions Height: 16.93 inches
• BTU Output: 40000
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Condensing Temperature: 100°F
• Country of Origin: USA
• Cycle/Hertz: 60 Hz
• Discharge Connection Size OD: 1/2 inches
• Discharge Connection Type: Stub
• Evaporating Temperature: 50°F
• Liquid Temperature: 85°F
• Locked Rotor Amps (LRA): 126.5
• Mounting Dimensions: 7.5 inches x 7.5 inches x 17.68 inches
• Oil Charge Initial: 42 oz.
• Oil Type: POE
• Phase: Single
• Protection: Internal Inherent Protection
• Rated Load Amps (RLA): 19.9-22.1
• Refrigerant: R-410A
• Return Gas Temperature: 70°F
• Suction Line Fitting Type: Stub
• Suction Line Size: 7/8 inches
• UL Listed: Yes
• Voltage: 208-230 VAC
• Operating Weight: 80 lbs
