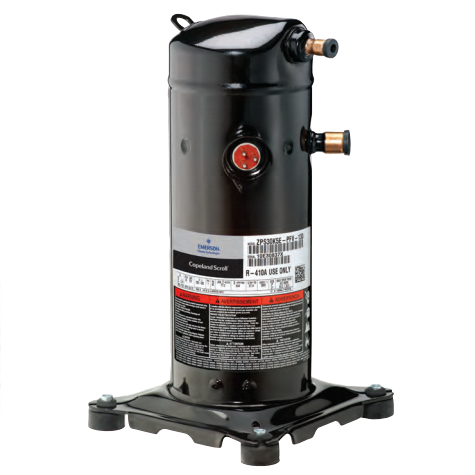

Copeland ZPS35K5E-TFD-800 Scroll UltraTech Compressor

Product Description

The Copeland ZPS35K5E-TFD-800 is a hermetic scroll compressor used in HVACR systems. It is compatible with R-410A refrigerant. This compressor has internal bypass ports enabling it to operate at a lower capacity, improving efficiency and humidity control. Its design allows for axial and radial compliance, enhancing liquid handling and minimizing risks of liquid damage.

• Hermetic scroll compressor for HVACR applications.
• Utilizes R-410A refrigerant for optimal performance.
• Internal bypass ports allow for effective capacity modulation.

Product Highlights

This compressor is designed for efficiency, reliability, and effective moisture control, making it suitable for various HVACR applications.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZPS35K5E-TFD-800

Technical Specifications

• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Refrigerant: R-410A
• Voltage: 208-230 VAC
• Phase: Single
• Cycle/Hertz: 50/60 Hz
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 42 oz.
• Displacement: 2.14 in³/Rev, 260.4 ft³/Hr
• Suction Line Size: 7/8 inches
• Discharge Connection Size: 1/2 inches
• Discharge Connection Type: Stub
• Suction Line Fitting Type: Stub
• Weight: 72.9
• Height: 16.94 inches
• Width: 9.56 inches
• Length: 9.56 inches
• Mounting Dimensions: 7.5 inches x 7.5 inches x 17.17 inches
• Sound Level: 72-77 dBA
• Locked Rotor Amps (LRA): 96
• Rated Load Amps (RLA): 17.9, 20
• Amps: 12.75-15.5
• BTU Output: 36,800
• Evaporating Temperature: 45°F, 50°F (10°C)
• Condensing Temperature: 115°F to 130°F (46.11°C to 54.44°C)
• Liquid Temperature: 100°F (37.78°C); 115°F (46.11°C)
• Return Gas Temperature: 65°F, 70°F (21.11°C)
• Mass Flow: 538 lbs/hr; 602 lbs/hr
• Approvals: UL Recognized
