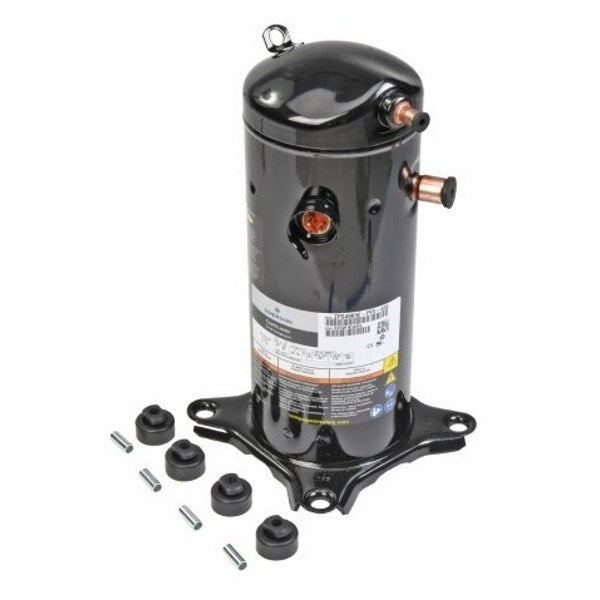

Copeland ZPS26LXE-PFV-800 Scroll Compressor 26,400 BTUH ZPS26K5E

Product Description

The Copeland ZPS26LXE-PFV-800 Scroll Compressor is a reliable two-step compressor with a capacity of 26,400 BTUH. This compressor is suitable for applications using R410A refrigerant and polyol ester oil. It includes an internal motor protector and features a three-fourths inch stub suction line and a half-inch stub discharge line.

• Designed for R410A refrigerant use
• Includes built-in motor protection
• Features 3/4 inch stub suction and 1/2 inch stub discharge

Product Highlights

This two-step scroll compressor is widely used in residential air conditioning and heat pumps due to its efficient performance and compatibility with common refrigerants.

Product Information

Standard Information

• Item Name: Scroll Compressor
• Manufacturer: Copeland

Technical Specifications

• Series: ZPS LXE Series
• Nominal Capacity: 26,000 BTUH
• Voltage Rating: 208/230 VAC
• Amperage Rating: 20 A
• Wattage Rating: 1,295 W
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Rated Load Amperage: 14.6 A
• Sound Power: 66 dBA
• Refrigerant Type: R-410A
• Dimensions: 9.69 inches L x 9.69 inches W x 15.28 inches H
• Run Capacitor (uF/V): 40/370
• Start Capacitor (uF/V): 106/330
• Discharge Line Size: 1/2 inch
• Suction Line Size: 3/4 inch
• Oil Type: POE
• Tonnage: 2.5
• Speed: 3,500 rpm
