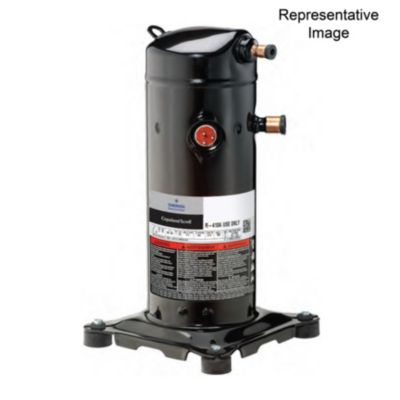

Copeland ZPS20K5E-PFV-830 Scroll Compressor, HFC, R-410A, 60 Hz, 1 - Phase, 208/230 V

Product Description

The Copeland ZPS20K5E-PFV-830 is a 20,200 BTU scroll compressor designed for use with R-410A refrigerant. This compressor operates at 60 Hz and is suitable for single-phase applications. Ideal for air conditioning systems, it is built for efficiency and reliability.

• BTU Output: 20,200
• Voltage: 208-230 VAC
• Weight: 47.3 lbs

Product Highlights

This compressor is designed for residential and commercial air conditioning applications, providing optimized performance and energy efficiency.

Product Information

Standard Information

• Brand: Copeland
• Phase: Single

Technical Specifications

• Amps: 7.4-9
• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Cycle/Hertz: 60 Hz
• Evaporating Temperature: 50°F (10°C)
• Mounting Dimensions: 7.5 x 7.5 x 16.03 inches
• Oil Type: Polyolester (POE)
• Refrigerant: R-410A; R-410B
• Sound Level (dBA): 66-71
• Height: 15.27 inches
• Length: 9.56 inches
• Width: 9.56 inches
• Country of Origin: USA
