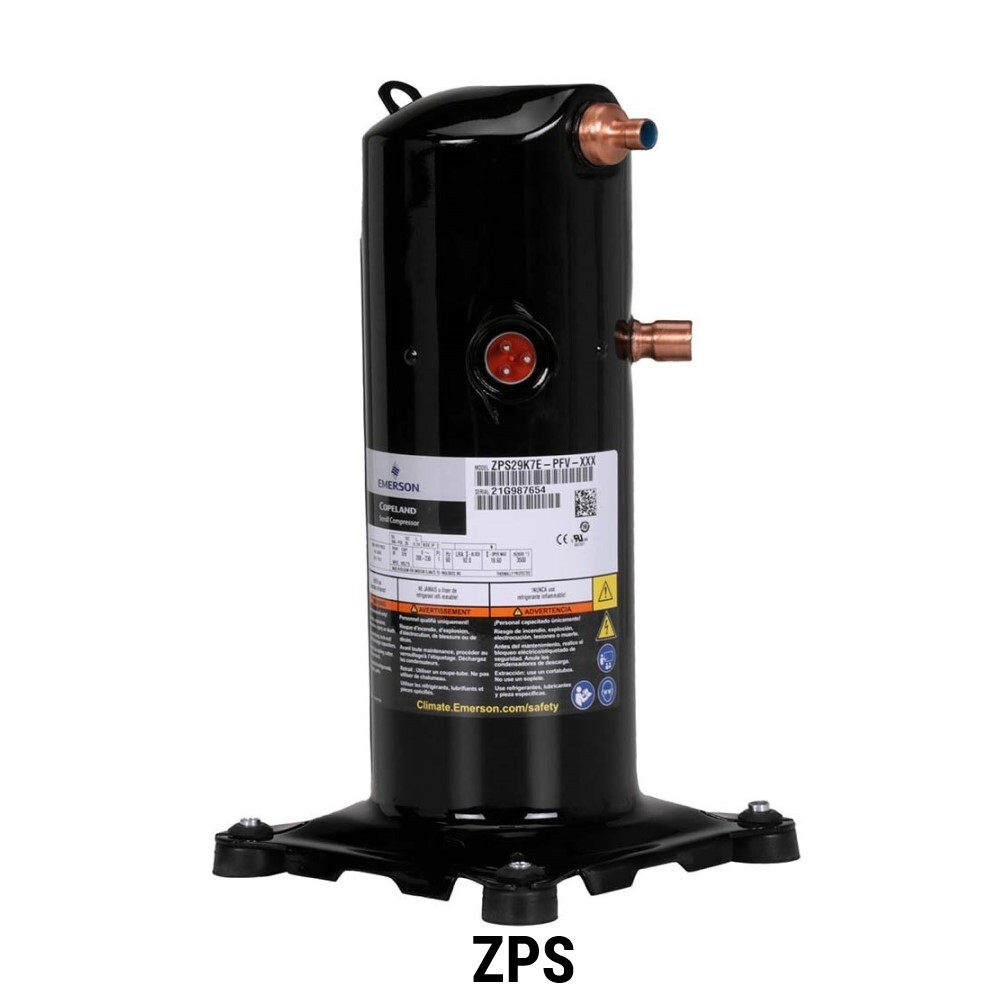

Copeland ZPS104KCETF5855 Scroll Compressor 105000 Btu/h

Product Description

The COPELAND ZPS104KCETF5855 is a two-stage scroll compressor rated at 105000 BTU/h (8.5 tons) for use with R-410A refrigerant. It operates on 200/230 volts, three-phase power at 50/60 Hz and draws 32.6 amps. Two-stage operation allows the compressor to run at reduced capacity during mild conditions and full capacity during peak demand, improving system efficiency and humidity control. This unit is designed for installation by licensed HVAC technicians in commercial and high-capacity residential cooling systems.

The ZPS104KCETF5855 is suited for large-tonnage split-system and packaged air conditioning applications where two-stage capacity control is required. Its scroll design provides low-noise, low-vibration operation compared to reciprocating alternatives. Typical installations involve rooftop units, commercial split systems, and large residential systems requiring 8.5-ton capacity with R-410A charge compatibility.

Key Features

• Two-stage scroll design delivers variable capacity for improved efficiency and comfort control
• Rated at 105000 BTU/h (8.5 tons) for high-capacity cooling applications
• Compatible with R-410A refrigerant systems
• Three-phase 200/230-volt operation at 50/60 Hz suits commercial power configurations
• 32.6-amp draw supports proper circuit and disconnect sizing during installation

Compatibility

Designed as an OEM-style replacement scroll compressor for large-tonnage R-410A commercial and residential cooling systems requiring two-stage, three-phase operation at 200/230 volts.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for handling R-410A refrigerant. Disconnect and lock out all electrical power and recover refrigerant from the system before removing the existing compressor. Verify that suction and discharge line sizing, oil type, and refrigerant charge are appropriate for this replacement unit per manufacturer specifications. Follow all applicable mechanical and electrical codes during wiring and refrigerant line connections.

Technical Specifications

• Compressor Type: Scroll
• Capacity: 105000 BTU/h
• Tonnage: 8.5 Ton
• Refrigerant: R-410A
• Voltage: 200/230 volts
• Phase: 3-Phase
• Frequency: 50/60 Hz
• Stages: 2-Stage
• Amperage: 32.6 amps
• UPC: 193031185409

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZPS104KCETF5855
