Copeland ZPD61KCETF5 Digital Scroll Compressor 63000 Btu

Product Description

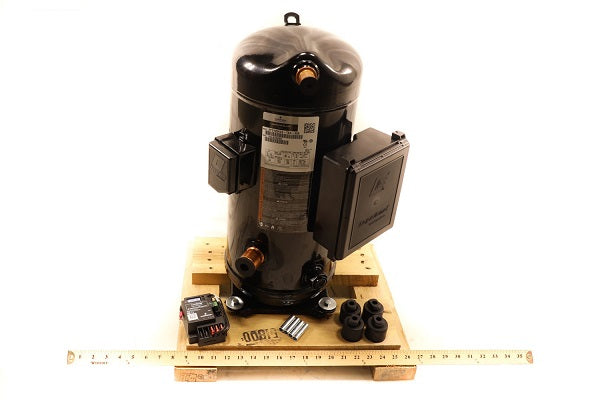

The COPELAND ZPD61KCETF5 is a digital scroll compressor rated at 63,000 BTU/h and 5 horsepower, designed for use in commercial and light-commercial refrigeration and air conditioning systems. Digital scroll technology modulates capacity by intermittently unloading the scroll mechanism, allowing the compressor to operate at variable effective capacities without changing motor speed. This unit runs on 200-230 volts, three-phase power, and is designed for use with R-410A refrigerant. Licensed HVAC technicians and refrigeration mechanics install this compressor in rooftop units, split systems, and precision cooling applications where demand-based capacity control reduces energy consumption and improves temperature stability.

The ZPD61KCETF5 is suited for commercial HVAC and refrigeration applications requiring modulating capacity control. Typical installations include rooftop package units, close-control precision cooling systems, and variable-load process cooling equipment operating on three-phase electrical service. The digital scroll design makes this compressor a common choice where standard fixed-capacity compressors cannot meet the efficiency or stability demands of the application. This unit is engineered for R-410A systems and is not compatible with legacy refrigerants such as R-22.

Key Features

• Digital scroll modulation provides variable effective capacity without a variable-speed motor
• 63,000 BTU/h cooling capacity for medium to large commercial loads
• 5 HP motor rated for 200-230 volt, three-phase electrical supply
• R-410A refrigerant compatible, suitable for current low-GWP system requirements
• Scroll compressor design delivers lower vibration and quieter operation compared to reciprocating alternatives

Compatibility

Designed as an OEM-style replacement for commercial and light-commercial digital scroll compressor applications using R-410A refrigerant on 200-230 volt, three-phase systems with a 63,000 BTU/h capacity requirement.

Installation Notes

Installation must be performed by a licensed HVAC or refrigeration technician holding an EPA Section 608 certification for handling R-410A refrigerant. De-energize and lock out the unit before removing the failed compressor, and recover all refrigerant in accordance with EPA regulations. Verify that the replacement compressor rotation matches the system wiring before applying power, as three-phase scroll compressors will be damaged by reverse rotation. Follow the equipment manufacturer's service manual for oil charge verification and system evacuation procedures prior to recharging.

Technical Specifications

• Capacity: 63,000 BTU/h
• Horsepower: 5 HP
• Voltage: 200-230 volts
• Phase: 3-Phase
• Refrigerant: R-410A
• Compressor Type: Digital Scroll

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZPD61KCETF5
