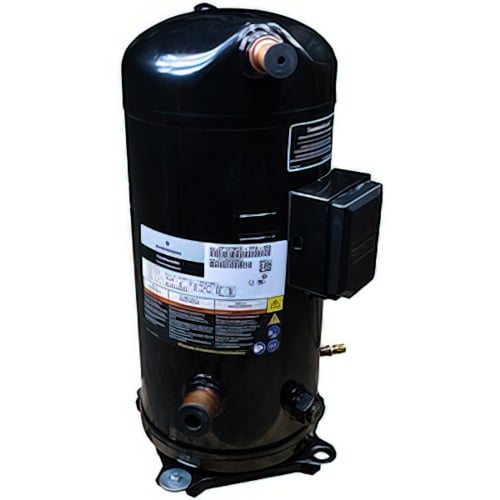

Copeland ZPD182KCE-TE5-950 Scroll Digital Compressor 183000 BTU Cooling R-410A 11 EER

Product Description

Copeland ZPD182KCE-TE5-950 is a scroll digital compressor designed for efficient cooling applications. This model delivers a cooling capacity of one hundred eighty-three thousand BTU per hour and is suitable for R-410A refrigerant. It operates at a voltage of two hundred eight to two hundred thirty volts, with a frequency of sixty hertz, and requires a three-phase electrical supply. The compressor has an amperage rating of sixty-two point one amps.

• Low noise and vibration levels
• Inherent motor protection
• Centrifugal oil pump enhances efficiency

Product Highlights

Designed for air conditioning and heat pump systems, this compressor features a compact size that measures seven and a half inches by seven and a half inches in mounting dimensions and has a height of twenty-two point two inches.

Product Information

Standard Information

• Manufacturer: Copeland
• MPN: ZPD182KCE-TE5-950

Technical Specifications

• Cooling Capacity: 183000 BTU/h
• Refrigerant Type: R-410A
• EER Rating: 11
• Voltage Rating: 208 - 230 V, 60 Hz, 3 Phase
• Amperage Rating: 62.1 A
• Suction Line Size: 1-3/8 Inch Stub
• Discharge Line Size: 7/8 Inch Stub
• Mounting Type: 7-1/2 Inch L x 7-1/2 Inch W
• Compressor Oil: POE
• Dimensions: 22.2 Inch H
