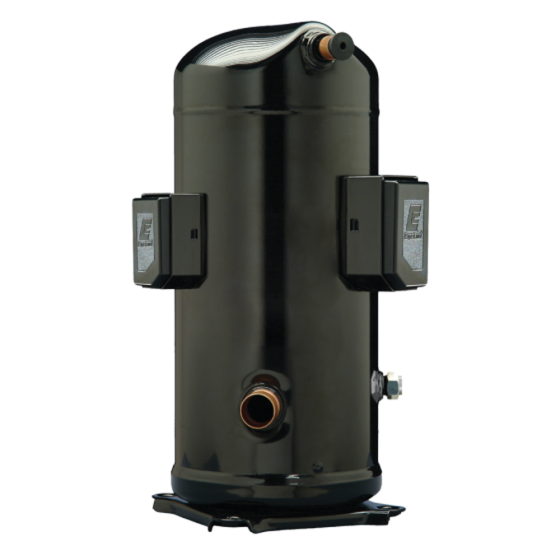

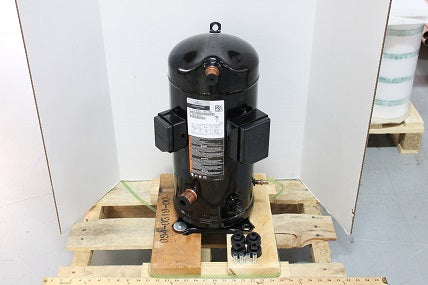

COPELAND ZPD122KCE-TFD-950 Scroll Compressor

Product Description

The COPELAND ZPD122KCE-TFD-950 is a scroll compressor ideal for air conditioning systems. This unit operates using R410A refrigerant and is designed for three-phase power at 460V. It delivers a capacity of 124000 BTUH based on specified conditions. Features include rotolock valve connections, which need an adapter for installation. Please note, an oil recharge is essential for operation, and a capacitor for function is required but not included.

• Scroll compressor for air conditioning
• Compatible with R410A refrigerant
• Requires a separate capacitor for operation

Product Highlights

This compressor is suitable for commercial and residential air conditioning systems requiring a robust solution.

Product Information

Standard Information

• Brand: COPELAND
• MPN: ZPD122KCE-TFD-950

Technical Specifications

• Application: A/C
• Refrigerant: R-410A
• Voltage: 460
• Phase: 3
• Capacity (BTUH): 124000
• Compressor Type: Scroll
• Connection Discharge (In.): 7/8 S
• Connection Suction (In.): 1 7/8 S
• Mount (In.): 7.5 x 7.5
• Oil: Polyol Ester
• Oil Recharge (Oz.): 81
• Rated Load Amps: 17.9
• Height (In.): 22
• Exterior Dimensions (D) (inches): 15.75
• Exterior Dimensions (W) (inches): 19
• Exterior Dimensions (H) (inches): 29
• Operating Weight (lbs): 108
• Shipping Weight (lbs): 107
