Copeland ZP91KCETFD Copeland Scroll ZP91KCE TFD 74,000 BTU

Product Description

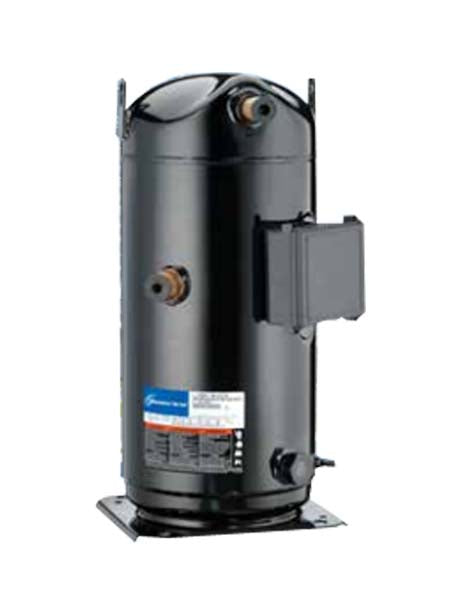

The COPELAND ZP91KCETFD is an air conditioning compressor designed for R410A refrigerant. It offers a cooling efficiency (EER) of 10.9 and a capacity of 74,000 BTU. Operating on 380-420V, 50Hz, 3-phase power, this 7.6 HP scroll compressor provides efficient cooling for various air conditioning applications. It features a low sound pressure of 61.0 dBA at 1m.

• Designed for R410A refrigerant
• High cooling efficiency (EER 10.9)
• 74,000 BTU capacity with 380-420V, 3-phase, 50Hz operation

Product Highlights

Efficient 7.6 HP scroll compressor for R410A systems with low noise operation.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP91KCETFD

Technical Specifications

• Refrigeration Type: R410A
• Cooling Efficiency (EER): 10.9
• Capacity (BTU): 74,000
• Input Voltage: 380-420V
• Frequency: 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 7.6 HP
• Capacity (W): 21,700 W
• Input Power (W): 6,790 W
• Operating Current: 12.4 A
• COP (W/W): 3.19
• Displacement: 84.6 cc/Rev
• Oil Quantity: 1.77 liters
• Locked Rotor Amps (LRA): 101.0 A
• Sound Pressure: 61.0 dBA at 1m
