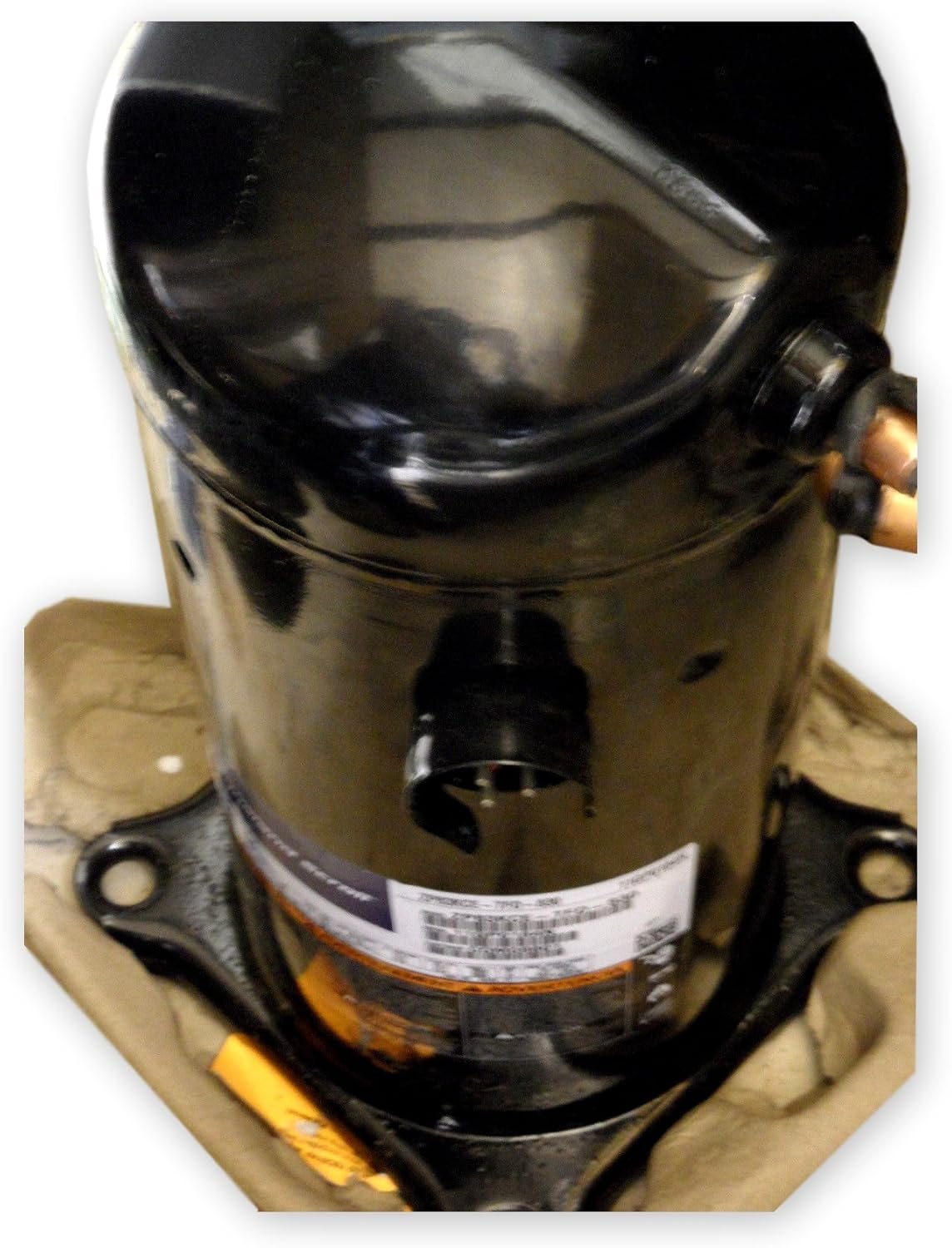

Copeland ZP83KCE-TFD-830 R410A Scroll Compressor 83,000 BTU

Product Description

The Copeland R410A Scroll Compressor, model ZP83KCE-TFD-830, delivers a cooling capacity of eighty-three thousand BTU. This compressor is designed for efficient operation in air conditioning systems. It features a three-phase power supply operating at four hundred sixty volts and includes various mounting and sizing specifications to fit standard applications.

• Cooling capacity: 83,000 BTU
• Power source: Corded electric
• Noise level: 75 dBA

Product Highlights

This compressor is ideal for commercial and residential air conditioning systems, ensuring effective cooling while maintaining low operational noise levels.

Product Information

Standard Information

• Brand: Copeland
• Model Number: ZP83KCE-TFD-830

Technical Specifications

• Cooling Capacity: 83,000 BTU
• Power Rating: 7650 W
• Voltage Rating: 460 V, 60 Hz, 3 Phase
• Amperage Rating: 11.8 A
• Suction Line Size: 7/8 Inch Stub
• Discharge Line Size: 1/2 Inch Stub
• Mounting Type: 7.5 Inch L x 7.5 Inch W x 18.16 Inch H
• EER Rating: 10.8
• Sound Level: 75 dBA
