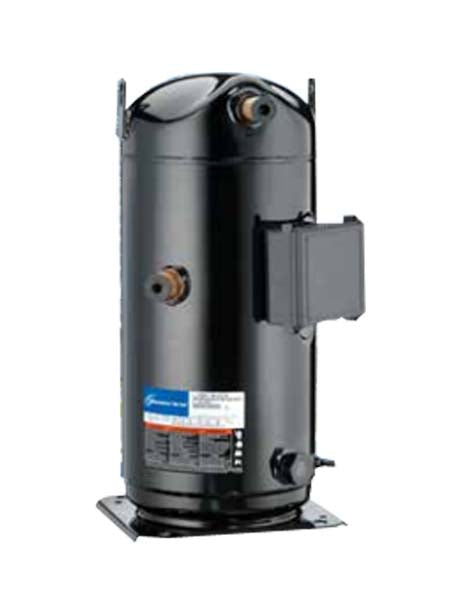

Copeland ZP83KCETFD Scroll Compressor 380-420V 50Hz 3-Phase

Product Description

The COPELAND ZP83KCETFD is a Scroll compressor designed for air conditioning applications. This 3-phase unit operates on 380-420V, 50Hz power and utilizes R410A refrigerant. It offers a cooling efficiency (EER) of 10.6 and a capacity range of 68,000 BTU, with a nominal HP of 6.9. The compressor has an input power of 6,400 W and a current of 11.7 A, making it suitable for various air conditioning systems.

• Uses R410A refrigerant for efficient cooling.
• Provides a cooling efficiency (EER) of 10.6 and 68,000 BTU capacity.
• Operates on 380-420V, 50Hz, 3-phase power.

Product Highlights

Designed for air conditioning, this COPELAND ZP83KCETFD Scroll compressor delivers 68,000 BTU capacity with R410A refrigerant and 10.6 EER.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP83KCETFD

Technical Specifications

• Refrigerant Type: R410A
• EER: 10.6
• Capacity Range: 68,000 BTU
• Input Voltage: 380-420V
• Frequency: 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 6.9 HP
• Capacity: 19,900 W
• Input Power: 6,400 W
• Operating Current: 11.7 A
• COP: 3.11 W/W
• Displacement: 77.2 cc/Rev.
• Oil Quantity: 1.77 l
• Weight: 39.5 Kg
• Locked Rotor Amps (LRA): 101.0 A
• Sound Pressure Level: 61.0 dBA @1m
• Series: ZP
• Compressor Type: Scroll
• Suction Evaporating Temperature Range: -15°C to 15°C
• Condensing Temperature Range: 20°C to 65°C
• Operating Conditions: 10K suction superheat, 0K subcooling
