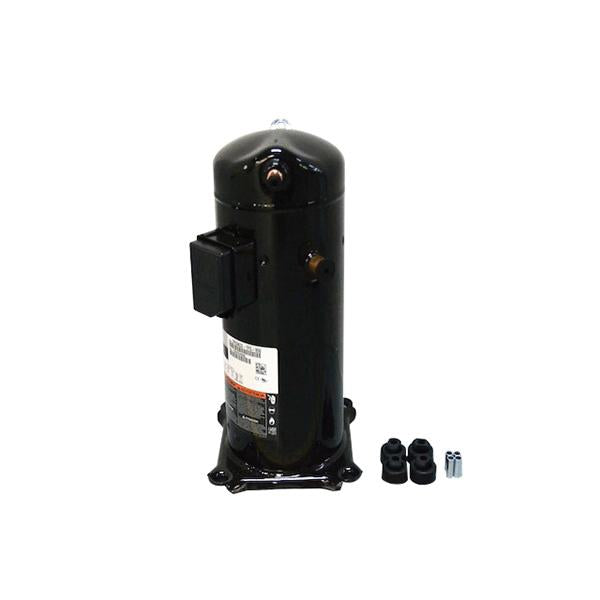

Copeland ZP83KCETF5 ZP83KCE-TF5-950 scroll compressor 7 hp 7 ton 9.56 in L x 9.56 in W x 17.91 in H

Product Description

The COPELAND ZP83KCETF5 Scroll Compressor is a 7 hp unit designed for efficient refrigeration applications. This ZP series compressor operates on 208-230 VAC, uses R-410A refrigerant, and has a cooling capacity of 83000 Btu/hr. It features internal inherent protection and a stub out suction and discharge configuration, making it suitable for various commercial systems.

• General 3-lead single voltage, 6-lead part winding (575 V)
• Internal inherent protection
• Stub out suction and discharge configuration

Product Highlights

Efficient 7 hp scroll compressor with R-410A refrigerant, 83000 Btu/hr capacity, and internal protection for commercial refrigeration.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP83KCETF5

Technical Specifications

• Series: ZP
• Cooling Capacity: 83000 Btu/hr
• Tonnage: 7 ton
• Flow Rate: 1220 - 1250 lb/hr
• Volume Displacement: 9.54 cu-ft/min
• Input Voltage: 208-230 VAC, 3 Phase, 60 Hz
• Rated Amperage: 22 A
• Power Consumption: 7650 W
• Horsepower: 7 hp
• Refrigerant Type: R-410A
• Motor Speed: 3500 rev/min
• Sound Level: 75 - 80 dBA
• Energy Efficiency Ratio (EER): 10.8 - 18.5
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Evaporator Temperature: 45 deg F
• Condensing Temperature: 100-130 deg F
• Return Gas Temperature: 65 deg F
• Liquid Temperature: 85-115 deg F
• Electrical Configuration: 3-lead single voltage, 6-lead part winding (575 V)
• Protection Type: Internal inherent protection
• Initial Oil Charge: 60 oz
• Oil Recharge: 56 oz
• Internal Free Volume: 264.5 cu-in
• Rated Load Amperage: 27.9 A
• Maximum Continuous Amperage: 39 A
• Locked Rotor Amperage: 164 A
• Mounting Dimensions (L x W x H): 7.5 in x 7.5 in x 18.16 in
• Suction/Discharge Configuration: Stub out
• Electrical Connection: Terminal block
• Start Resistance: 0.501 ohm
• Displacement per Revolution: 4.71 cu-in/rev
• Mounting Type: 7-1/2 Inch x 7-1/2 Inch Base Mount
• Suction Line Size: 7/8 Inch
• Run Capacitor: 3-PHASE
