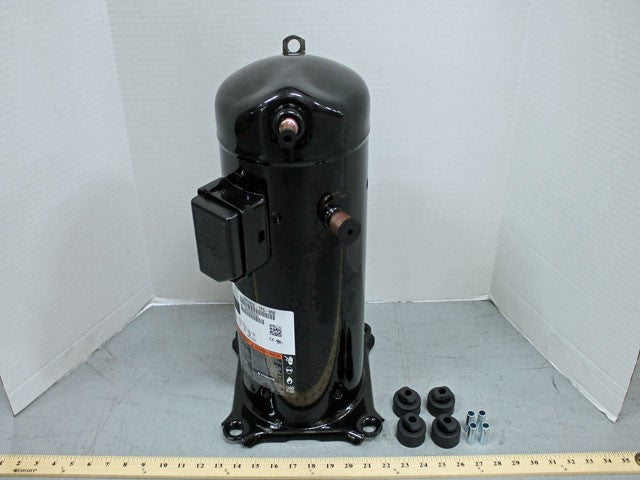

Copeland ZP72KCETF5 Scroll Compressor 72000 Btu R-410A

Product Description

The COPELAND ZP72KCETF5 is a scroll compressor rated at 72,000 BTU/h and 6 horsepower, designed for use in commercial and residential air conditioning and heat pump systems. Operating on 200-230 volts at 3-phase power, this compressor is engineered for R-410A refrigerant. Scroll compressors deliver fewer moving parts, quieter operation, and more efficient compression compared to reciprocating designs. This unit is installed by licensed HVAC technicians as part of a split system or packaged unit condensing section.

The ZP72KCETF5 is suited for light commercial and larger residential cooling applications where 3-phase electrical service is available. It fits into condensing units handling loads in the 6-ton equivalent range. Its R-410A compatibility makes it appropriate for systems designed under current refrigerant standards. Typical installation scenarios include rooftop units, split system condensers, and commercial packaged cooling equipment.

Key Features

• 72,000 BTU/h cooling capacity in a scroll compressor design
• 6 HP rating suitable for light commercial and large residential loads
• 200-230V, 3-phase operation for commercial electrical service compatibility
• R-410A refrigerant compatibility aligned with current industry standards
• Scroll design provides efficient, low-vibration compression with reduced mechanical wear

Compatibility

Designed as an OEM-style scroll compressor replacement for R-410A air conditioning and heat pump condensing units requiring a 6 HP, 3-phase compressor at 200-230 volts.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Recover all refrigerant from the system before removing the failed compressor. Verify that the electrical supply matches the compressor voltage and phase requirements before energizing. Follow the manufacturer and local code requirements for refrigerant handling, brazing, and system evacuation prior to recharge.

Technical Specifications

• Compressor Type: Scroll
• Capacity: 72,000 BTU/h
• Horsepower: 6 HP
• Voltage: 200-230 volts
• Phase: 3-Phase
• Refrigerant: R-410A

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP72KCETF5
