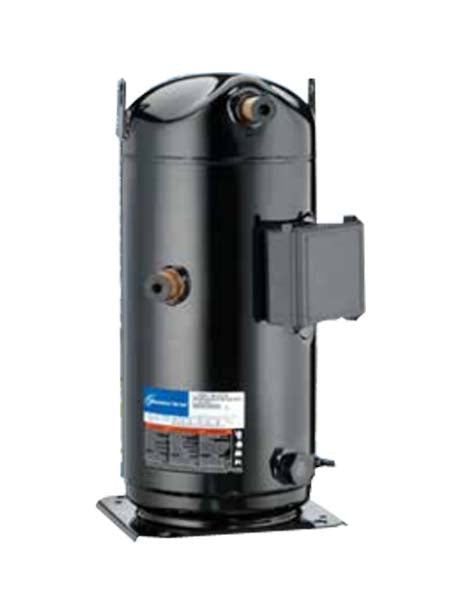

Copeland ZP67KCETFD scroll ZP67KCE TFD 380-420V 50Hz 3-phase 55,000 BTU

Product Description

The COPELAND ZP67KCETFD is an air conditioning compressor designed for R410A refrigerant, offering a cooling efficiency (EER) of 10.6 and a capacity of 55,000 BTU. This 3-phase compressor operates on 380-420V, 50Hz power, making it suitable for various air conditioning applications. It features a nominal HP of 5.6 and an input power of 5,200 W, with a current draw of 9.1 A.

• Designed for R410A Refrigerant
• Cooling Efficiency (EER) of 10.6
• Capacity Range of 55,000 BTU

Product Highlights

Efficient R410A air conditioning compressor with 55,000 BTU capacity and 10.6 EER, operating on 380-420V 3-phase power.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP67KCETFD

Technical Specifications

• Refrigerant Type: R410A
• Cooling Efficiency (EER): 10.6
• Capacity (BTU): 55,000
• Voltage: 380-420V ; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal HP: 5.6
• Capacity (W): 16,100
• Input Power (W): 5,200
• Current (A): 9.1
• COP (W/W): 3.11
• Displacement (cc/Rev): 63.0
• Oil Quantity (l): 1.77
• Net Weight (Kg): 39.9
• LRA (A): 74.0
• Sound Pressure (dBA): 61.0
• Line Size: 1/2 inch ODF Discharge & 7/8 inch ODF Suction
