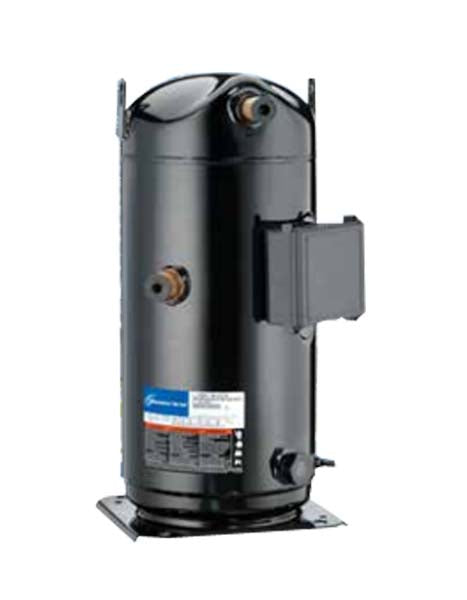

Copeland ZP61KCETFD scroll ZP61KCE TFD 380-420V 50Hz 50,000 BTU

Product Description

The COPELAND ZP61KCETFD compressor is designed for air conditioning applications, utilizing R410A refrigerant. It operates on 3-phase power at 380-420V, 50Hz, and offers a cooling capacity of 50,000 BTU (14,650 W). With a nominal horsepower of 5.1 and an EER of 10.6, this unit provides efficient performance for HVAC systems. Its displacement is 58.1 cc/Rev.

• R410A Refrigerant Type for air conditioning systems.
• 50,000 BTU capacity with 3-phase 380-420V; 50Hz operation.
• Nominal 5.1 HP and 10.6 EER for efficient cooling.

Product Highlights

Air conditioning compressor with R410A refrigerant, 50,000 BTU capacity, and 3-phase 380-420V 50Hz power.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP61KCETFD

Technical Specifications

• Refrigerant Type: R410A
• Input Voltage: 380-420V ; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 5.1
• Capacity (Watts): 14,650
• Capacity (BTU/hr): 50,000
• Input Power (Watts): 4,750
• Current: 8.3 A
• Coefficient of Performance (COP): 3.11 (W/W)
• Energy Efficiency Ratio (EER): 10.6 (Btu/Wh)
• Displacement: 58.1 cc/Rev.
• Oil Quantity: 1.66 liters
• Locked Rotor Amps (LRA): 64.0 A
• Sound Pressure Level (at 1m): 60.0 dBA
