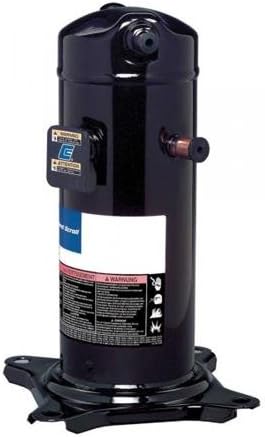

Copeland ZP36K5E-TFD-830 3 Ton R410A Scroll Compressor 460/3 Ph 36,000 BTU

Product Description

The Copeland ZP36K5E-TFD-830 is a 3-ton scroll compressor engineered for HVAC systems. This model is built to handle 460 volts and three-phase power, delivering 36,000 BTU of cooling capacity.

• 3-ton cooling capacity
• Scroll compressor technology
• 460 volts, three-phase power

Product Highlights

Perfect for HVAC applications, this compressor uses R410A refrigerant and operates with polyolester (POE) oil for enhanced efficiency. It features internal inherent protection and is designed to meet ASRAE ARI standards.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZP36K5E-TFD-830
• BTU Output: 36,000
• Oil Type: Polyolester (POE)
• Operating Voltage: 460 volts, three-phase

Technical Specifications

• Weight: 64.3 pounds
• Amps: 4.1-5.5
• Height: 19.94 inches
• Width: 9.56 inches
• Length: 9.56 inches
• Compressor Type: Scroll
• Refrigerant: R-410A
• Cycle/Hertz: 50/60 Hz
• Protection: Internal Inherent Protection
• Sound Level: 71-76 dBA
• Evaporating Temperature: 45°F to 50°F
• Return Gas Temperature: 65°F to 70°F
• Suction Line Size (OD): 7/8 inches
• Mounting Dimensions: 7.5 x 7.5 x 17.7 inches
• UL Listed: Yes
• Country of Origin: USA
• Dimensional Weight: 15
• Mass Flow: 530 - 600 lbs./hr.
• Oil Charge Initial: 42 oz.
• Locked Rotor Amps (LRA): 44
• Rated Load Amps (RLA): 6 - 6.6
