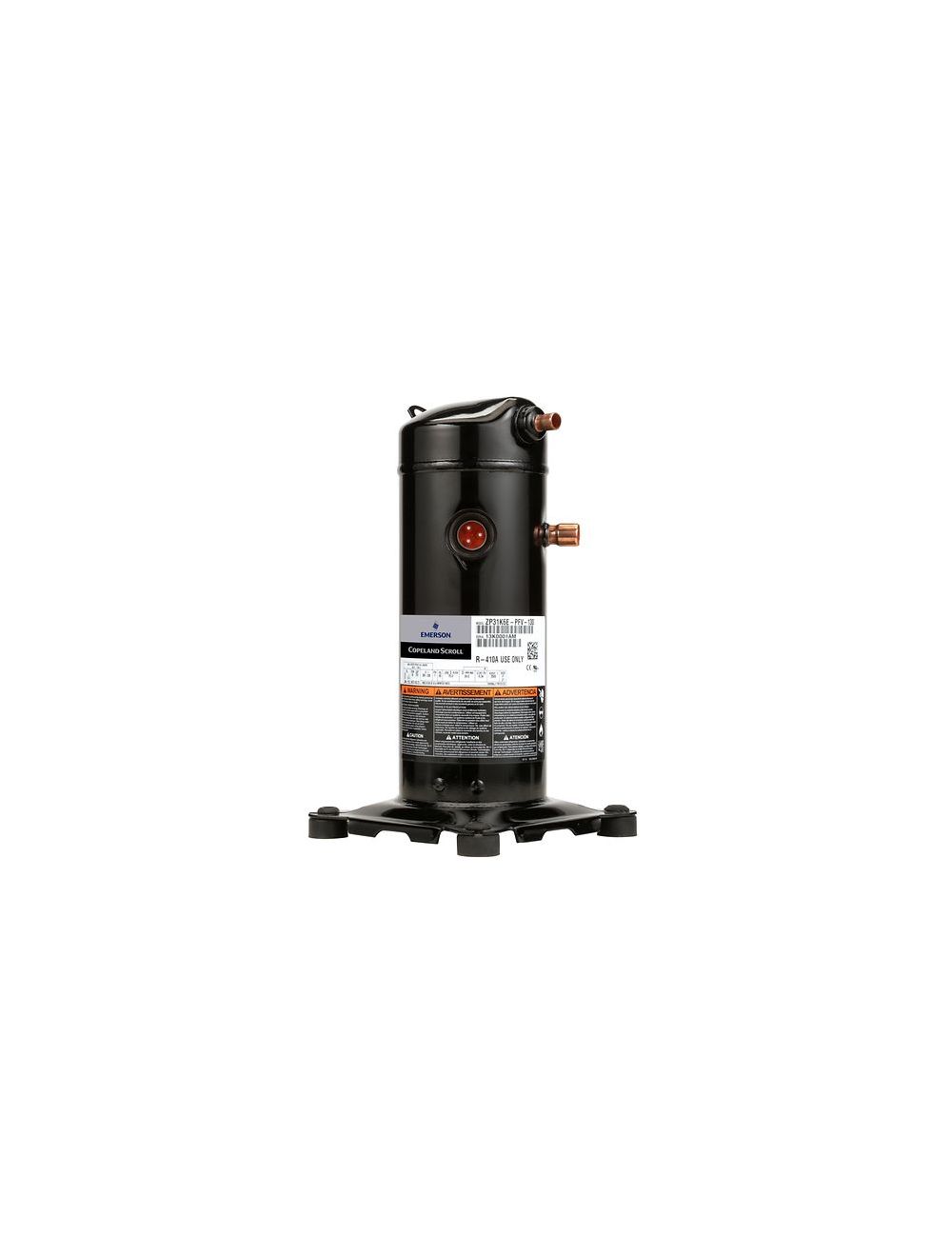

Copeland ZP34LXE-TFD-800 Scroll Compressor 460V R410A

Product Description

The Copeland ZP34LXE-TFD-800 is a hermetic scroll compressor that supports refrigeration and air conditioning systems. It operates at 460V with a three-phase power supply and is designed for use with R410A refrigerant. The compressor effectively handles the compression of refrigerant gas, playing a vital role in heat exchange processes. This model is adaptable for various system designs and is suitable for maintaining temperature control in commercial settings.

• Hermetic scroll compressor type
• Designed for use with R410A refrigerant
• Operates on a 460V three-phase power supply

Product Highlights

The Copeland ZP34LXE-TFD-800 is essential for efficient cooling applications.

Product Information

Standard Information

• Brand: Copeland
• Country of Origin: USA

Technical Specifications

• MPN: ZP34LXE-TFD-800
• Compressor Type: Scroll
• Voltage: 460 VAC
• Phase: Three
• Refrigerant: R-410A
• BTU Output: 34,600
• Weight: 63.8 lbs
• Dimensions: 9.56 x 9.56 x 16.94 inches
• Oil Type: Polyolester (POE)
• Initial Oil Charge: 42 oz
• Displacement: 2 in³/Rev
• Sound Level: 71-76 dBA
• Suction Line Size: 7/8 inches
• Discharge Connection Size: 1/2 inches
• Approvals: UL Recognized
• Protection: Yes
