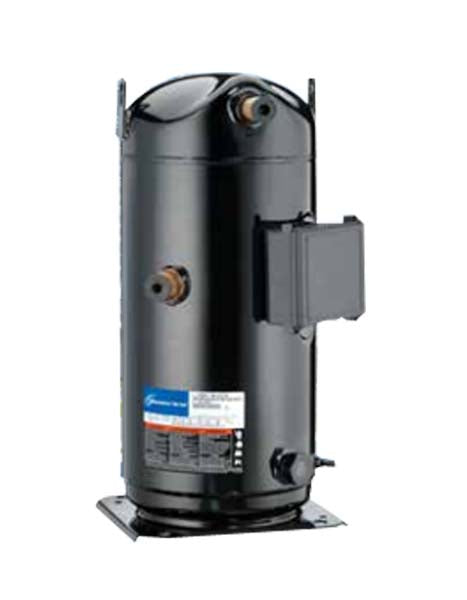

Copeland ZP24K5ETFD scroll ZP24K5E TFD 380-420V 50Hz 3-phase 19,400 BTU

Product Description

The COPELAND ZP24K5ETFD compressor is designed for air conditioning applications, utilizing R410A refrigerant. It operates on 380-420V, 50Hz, 3-phase power, offering a cooling capacity of 19,400 BTU (5,700 W) and a nominal HP of 2.0. This unit features a cooling efficiency (EER) of 9.6 and a displacement of 22.8 cc/Rev.

• R410A Refrigerant Type
• 19,400 BTU Cooling Capacity
• 380-420V, 50Hz, 3-Phase Operation

Product Highlights

Efficient R410A scroll compressor for air conditioning with 19,400 BTU capacity and 9.6 EER.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP24K5ETFD

Technical Specifications

• Refrigerant Type: R410A
• Capacity (Watts): 5700
• Input Voltage: 380-420V 50Hz
• Phase: 3
• Application: Air Conditioning
• Nominal Horsepower: 2.0
• Capacity (BTU/hr): 19400
• Input Power (Watts): 2020
• Current (Amps): 3.6
• COP (W/W): 2.81
• EER (BTU/Wh): 9.6
• Displacement (cc/Rev): 22.8
• Oil Quantity (Liters): 0.74
• Locked Rotor Amps (LRA): 28.0
• Sound Pressure at 1m (dBA): 55.0
