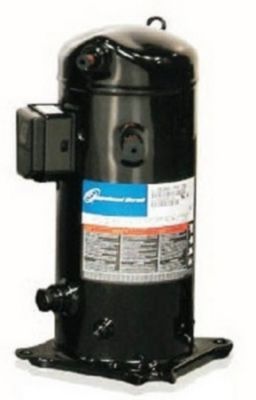

Copeland ZP24K5E-PFV-830 Scroll Compressor 24000 BTU Output

Product Description

The Copeland ZP24K5E-PFV-830 is a scroll compressor designed for reliable performance in HVAC systems. This compressor operates efficiently with a BTU output of twenty-four thousand, making it suitable for various cooling applications.

• Weight: forty-eight point three pounds
• Voltage: two hundred eight to two hundred thirty VAC
• Compressor type: scroll

Product Highlights

This compressor has a hermetic housing, making it suitable for tight installations, and it operates at a frequency of sixty Hertz.

Product Information

Standard Information

• Brand: Copeland
• Part Number: ZP24K5E-PFV-830

Technical Specifications

• Weight: 48.3 lbs
• Amps: 7-10.6
• BTU Output: 24,000
• Compressor Type: Scroll
• Voltage: 208-230 VAC
• Oil Type: Polyolester (POE)
• Refrigerant: R-410A
• Suction Line Size: 3/4 inches
• Dimensional Weight: 3 lbs
• Discharge Connection Size: 1/2 inches
• Sound Level: 66-71 dBA
• Height: 15.74 inches
• Length: 9.69 inches
• Width: 9.69 inches
• Country of Origin: USA
