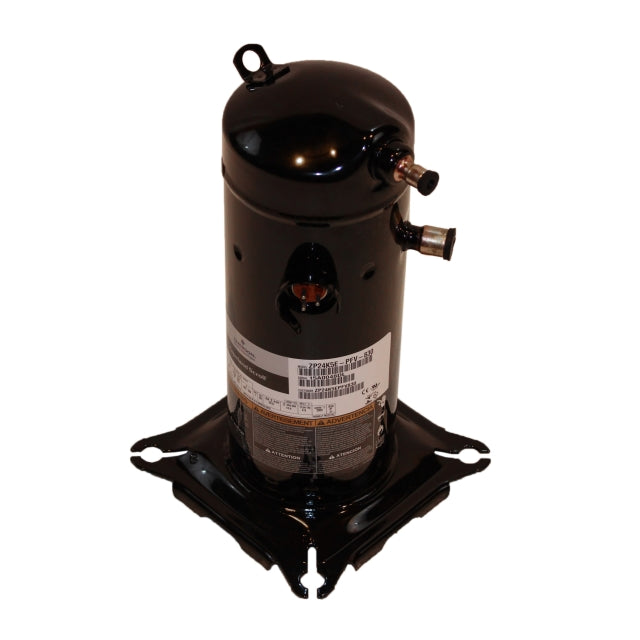

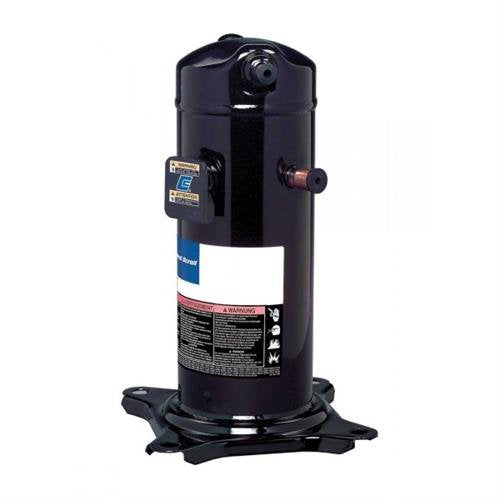

Copeland ZP24K5E-PFV R410A Scroll Compressor 2 ton 24,000 BTU

Product Description

The COPELAND ZP24K5E-PFV is a 2 ton R410A scroll compressor with a 24,000 BTU rating. Engineered for efficiency and durability, this compressor provides solutions for systems requiring a range of evaporating capabilities. It operates at 208 to 230 VAC and features a 1/2" ODF discharge and 3/4" ODF suction line size.

• Engineered for higher efficiency and superior durability
• Features 1/2" ODF discharge and 3/4" ODF suction
• Operates with R-410A refrigerant

Product Highlights

This Copeland scroll compressor is designed for optimal performance in air conditioning applications, offering quiet operation and a compact, lightweight design.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP24K5E-PFV
• Country of Origin: UNITED STATES

Technical Specifications

• Noise Level: 69 dB
• Sound Level: 66 to 71 dBA
• Power Source: Corded Electric
• Voltage: 208/230
• Refrigerant: R-410A
• BTU: 24,000
• Series: ZP
• BTU Rating: 24000 Btu/hr
• Tonnage: 2 ton
• Amperage Rating: 10.6 A
• Voltage Rating: 208 to 230 VAC
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Refrigerant Type: R-410A, HFC
• Discharge Line Size: 1/2 in Stub
• Flow Rate: 353 to 403 lb/hr
• CFM Rating: 2.82 cfm
• Suction Line Size: 3/4 in Stub
• Power Rating: 2400 W, 2 hp
• Speed Rating: 3500 rpm
• EER Rating: 10 to 20.9
• Temperature Rating: 45 to 50 deg F Evaporator, 100 to 130 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid
• Used On Item: Air Conditioner
• Model Variation: 5
• Bill of Material Number: 830
• Current Rating: 64 Amp (Locked Rotor), 14.3 Amp (Load Rated)
• Capacity: 24000 BTU/Hour
• Cooling Efficiency: 10 EER
• Oil Type: Polyolester
• Motor Type: Permanent Split Capacitor
• Motor Protection Type: Internal Inherent
• Brand: Copeland
• Discharge Connection: Horizontal
• Discharge ID: 1/2"
• Line Voltage (60Hz): 240V
• Mounting Arrangement: A
• Refrigerant Oil Type: Polyol Ester (POE)
• Suction Connection: Horizontal
• Suction ID: 3/4"
• Application: AC/HP
• Compressor Capacity: 24000 btu
• Discharge Line Height: 14.15
• Frequency: 50Hz, 60Hz
• Height: 15.3 in
• Length: 9.56 in
• Liquid Line Size: 1/2 H 14.15 in
• LRA: 64
• Max RLA: 14.3
• Motor Phase: 1
• Oil Capacity: 0 ml
• Oil Recharge: 1.3125 pints
• Run Capacitor: 40/370 µF/v
• Shell Height: 15.3 in
• Start Capacitor: 88-106/330 µF/v
• Suction Line Height: 10.3
• Technology: Scroll
• Type: Herm
• Weight: 48 lb
• Width: 9.56 in
• BtuH Capacity @ 45°F Evap.: 24000
• Compressor: Scroll
• Conn.: Molded Plug
• Discharge Conn.: 1/2" ODF
• Phase: 1
• Suction Conn.: 3/4" ODF
• Tons: 2
• Volts: 208/230
