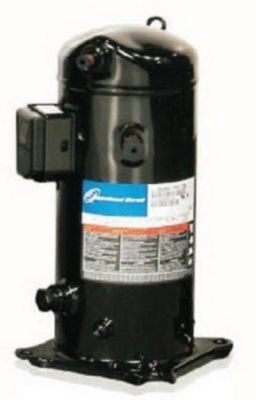

Copeland ZP20K5E-PFV-830 Scroll Compressor 20,000 BTU Output

Product Description

The Copeland ZP20K5E-PFV-830 is a scroll compressor designed for high efficiency in cooling applications. This compressor provides a BTU output of 20,000 and operates at a voltage of 208-230 VAC. Its hermetic design ensures reliable performance in various environments.

• Cooling capacity of 20,000 BTU.
• Single-phase operation.
• Includes a robust compressor housing.

Product Highlights

The unit is engineered for both residential and commercial applications, making it suitable for HVAC systems.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZP20K5E-PFV-830

Technical Specifications

• Weight: 47.4 lbs
• Amps: 6.1-9.1
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Cycle/Hertz: 60 Hz
• Evaporating Temperature: 50°F
• Refrigerant: R-410A
• Sound Level: 66-71 dBA
• Mounted Dimensions: 7.5 x 7.5 x 16.02 inches
• Oil Type: Polyolester (POE)
• Suction Line Size (OD): 3/4 inches
• Discharge Connection Size OD: 1/2 inches
• Mass Flow: 295 lbs/hr
• Country of Origin: USA
