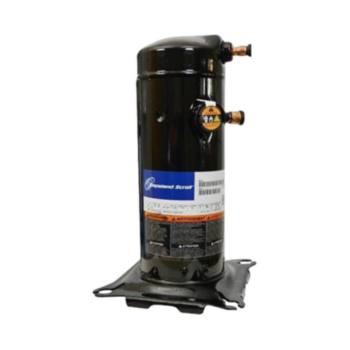

Copeland ZP16K5E-PFV-830 Factory Authorized Parts™ 15500 BTUH Compressor R-410A

Product Description

The Copeland ZP16K5E-PFV-830 is a scroll compressor designed for R-410A refrigerant systems. This single-phase compressor operates at a voltage of 208/230 VAC. It is rated to deliver an output of fifteen thousand five hundred BTU, making it suitable for various heating and cooling applications.

• High EER of 11.0 for efficiency
• Low noise and vibration
• Inherent motor protection with centrifugal oil pump

Product Highlights

The Copeland ZP16K5E-PFV-830 compressor is ideal for heat pump and air conditioning applications, ensuring reliable performance in various conditions.

Product Information

Standard Information

• Brand: Copeland
• Type: Scroll Compressor

Technical Specifications

• Weight: 47.4 lbs
• Amps: 4.8-7.3
• BTU Output: 15,500
• Cycle/Hertz: 60 Hz
• Voltage: 208-230 VAC
• Refrigerant: R-410A
• Height: 15.27 inches
• Width: 9.56 inches
• Length: 9.56 inches
• Oil Type: Polyolester (POE)
• Rated Load Amps (RLA): 10
• Locked Rotor Amps (LRA): 48
• Suction Line Size (OD): 3/4 inches
• Discharge Connection Size OD: 1/2 inches
