Copeland ZP154KCETFD Scroll ZP154KCE TFD TWD 380-420V 50Hz

Product Description

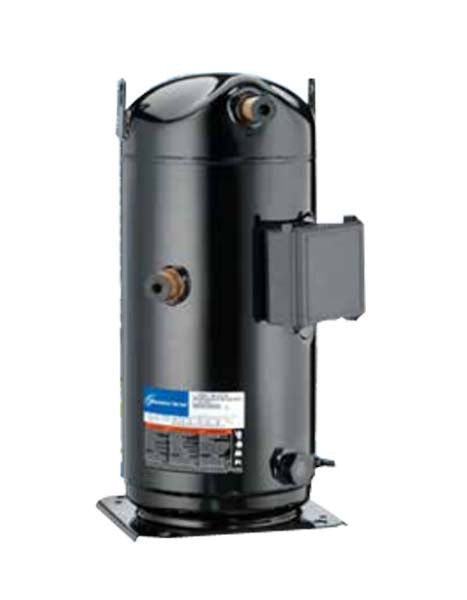

The COPELAND ZP154KCETFD scroll compressor is engineered for air conditioning applications, utilizing R410A refrigerant. It operates on a 3-phase, 380-420V; 50Hz power supply, delivering a cooling efficiency (EER) of 11.0 and a capacity of 127,000 BTU. With a nominal horsepower of 12.8 and an input power of 11,600 W, it draws 20.8 A. The unit has a displacement of 142.9 cc/Rev. and requires 3.25 liters of oil.

• Designed for air conditioning applications with R410A refrigerant.
• Operates on a 3-phase, 380-420V; 50Hz power supply.
• Features a cooling efficiency (EER) of 11.0 and 127,000 BTU capacity.

Product Highlights

This COPELAND ZP154KCETFD scroll compressor provides efficient cooling for air conditioning systems, featuring a 12.8 nominal HP, 11,600 W input power, and R410A refrigerant compatibility.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP154KCETFD

Technical Specifications

• Refrigeration Type: R410A
• Cooling Efficiency (EER): 11.0
• Capacity (BTU): 127,000
• Input Voltage: 380-420V ; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 12.8
• Capacity (W): 37,000
• Input Power (W): 11,600
• Current (A): 20.8
• COP (W/W): 3.22
• Displacement (cc/Rev.): 142.9
• Oil Quantity (L): 3.25
• Locked Rotor Amps (LRA): 140.0
• Sound Pressure @1m (dBA): 65.0
