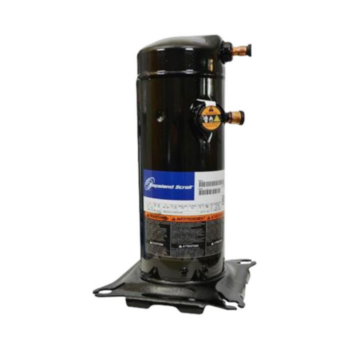

Copeland ZP120KCE-TFD-855 Factory Authorized Parts Scroll Compressor

Product Description

The Copeland ZP120KCE-TFD-855 is a reliable scroll compressor designed for three-phase applications. It operates at a voltage of four hundred sixty volts alternating current (VAC) and delivers an output of one hundred twenty-three thousand BTUs. This unit is specifically engineered to use R-410A refrigerant.

• Compatible with R-410A refrigerant.
• Provides an output of one hundred twenty-three thousand BTUs.
• Three-phase operation at four hundred sixty VAC voltage.

Product Highlights

The ZP120KCE-TFD-855 is suitable for a variety of HVAC systems, ensuring efficient cooling performance.

Product Information

Standard Information

• Part Number: ZP120KCETFD855
• Brand: Copeland

Technical Specifications

• Weight: 135 pounds
• Amps: 14.9-16.4
• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Cycle/Hertz: 60 Hz
• BTU Output: 123,000
• Refrigerant: R-410A
• Evaporating Temperature: 35°F
• Return Gas Temperature: 65°F (18.33°C)
• Liquid Temperature: 105°F
• Suction Line Size (OD): 1 3/8 inches
• Discharge Connection Size OD: 7/8 inches
• Voltage: 380-420/460 VAC
• Sound Level (dBA): 79-84
• UL Listed: Yes
• Country of Origin: USA
