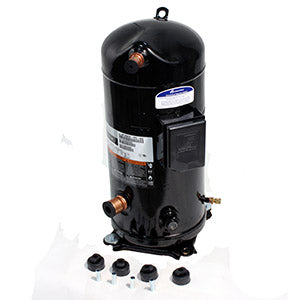

Copeland ZP120KCE-TF5-965 Scroll Compressor 123000 Btu

Product Description

The COPELAND ZP120KCE-TF5-965 is a 10 HP scroll compressor rated at 123,000 BTU/h, designed for use with R410A refrigerant in commercial and light-commercial cooling systems. Operating on 200-230 volts, 3-phase power, this unit delivers the capacity and efficiency expected of Copeland scroll technology. It features Rotalock service valve connections, which allow for quick field service without the need to recover refrigerant from the line set. Licensed HVAC technicians and refrigeration mechanics install this compressor as the heart of split, packaged, or chiller-style systems requiring substantial cooling output.

This compressor is suited for commercial rooftop units, split-system condensing units, and other high-capacity refrigeration or air conditioning applications that call for 3-phase power and R410A refrigerant. The 10 HP rating and 123,000 BTU/h output make it appropriate for medium to large commercial installations where reliable, continuous-duty scroll compression is required. It is not intended for single-phase residential systems.

Key Features

• 123,000 BTU/h cooling capacity for high-demand commercial applications
• 10 HP scroll compressor design for efficient, low-vibration operation
• R410A refrigerant compatible — no ozone-depleting refrigerant
• 200-230V, 3-phase power input for commercial electrical infrastructure
• Rotalock service valve connections for simplified field servicing

Compatibility

Designed as an OEM-style replacement or new-installation scroll compressor for commercial R410A cooling systems operating on 200-230V, 3-phase power with Rotalock service connections.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Disconnect and lock out all electrical power and recover system refrigerant before removing the existing compressor. Follow manufacturer wiring diagrams and applicable electrical codes, including NEC requirements for 3-phase motor circuits, when connecting power leads. Verify oil charge and rotation direction before system startup.

Technical Specifications

• Capacity: 123,000 BTU/h
• Horsepower: 10 HP
• Voltage: 200-230 volts
• Phase: 3 Phase
• Refrigerant: R410A
• Compressor Type: Scroll
• Connection Type: Rotalock

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP120KCE-TF5-965
