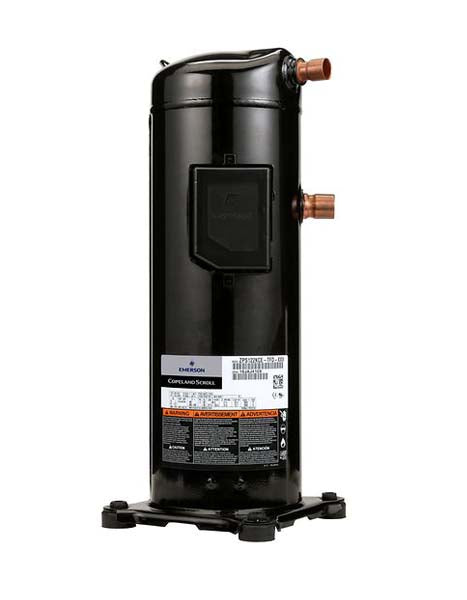

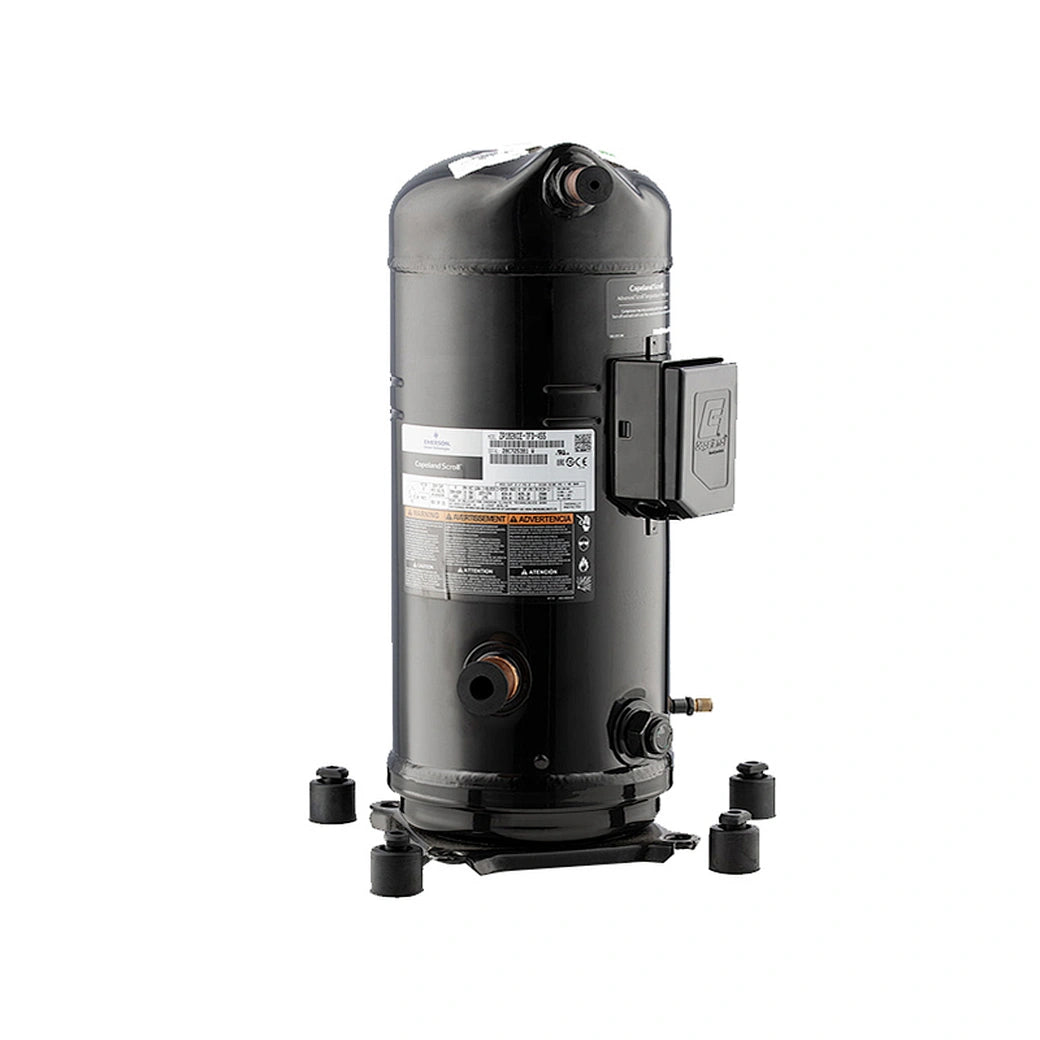

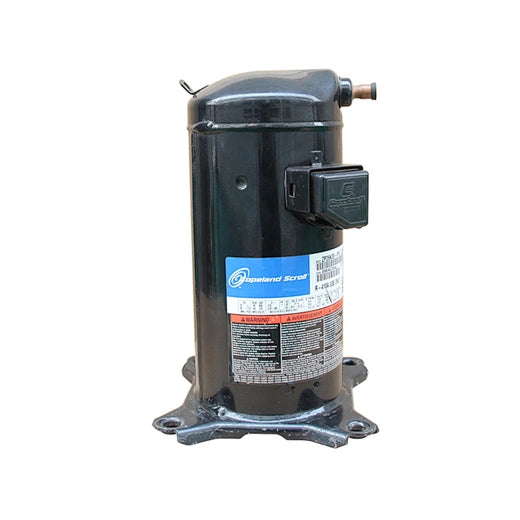

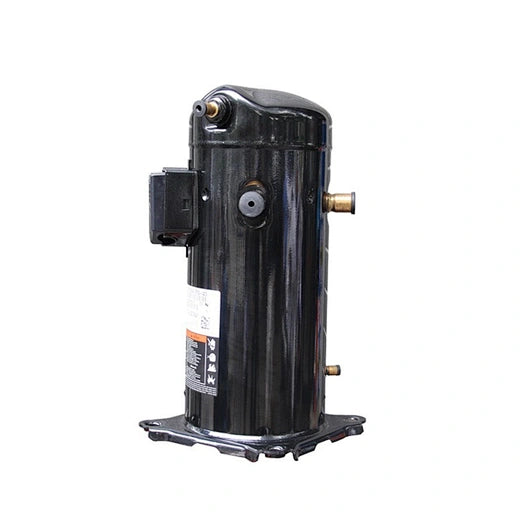

Copeland ZP104KCE-TF5-250 Scroll Compressor 106,000 BTU

Product Description

The Copeland ZP104KCE-TF5-250 is a versatile scroll compressor designed for use in air conditioning and heat pump systems. This model operates with two stages of capacity, either sixty-seven percent or one hundred percent, making it adaptable for varying needs. It is ideal for applications including air conditioning, refrigeration, chillers, and driers. The vapor injection feature helps enhance system capacity and overall efficiency.

• Dual capacity stages for flexibility
• Low modulation complexity
• Reliable performance from the Copeland Scroll technology

Product Highlights

This compressor is suitable for a wide range of HVAC applications, providing reliability and efficiency for trade professionals.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZP104KCE-TF5-250

Technical Specifications

• Refrigeration Type: R-410A
• Cooling Efficiency (EER): Up to 20.5
• Phase: 3
• Capacity Range (BTU): 75000-128500
• Voltage@Hz: 200/220@50, 200/230@60
• Application: Air Conditioning
• Nominal: 9HP
• Displacement: 96.4m3/hr
• Input: 7790W
• Capacity: 86800 BTU
• Voltage: 380-420V, 50Hz, 3Ph
• Net Weight: 48 KG
• Usage/Application: AC, drier, refrigeration, chiller, etc.
