Copeland ZP103KCETFD scroll 380-420V 50Hz 3-phase

Product Description

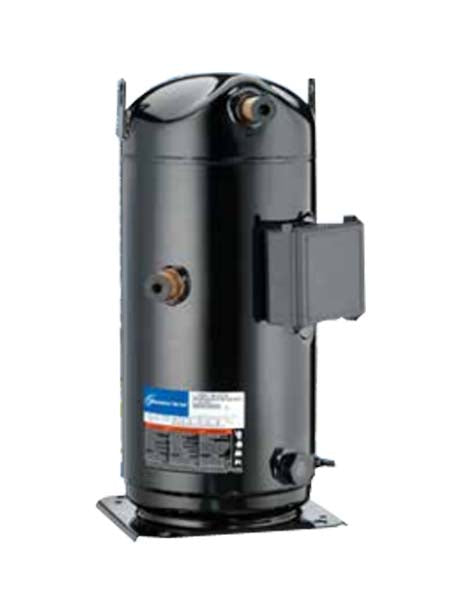

The COPELAND ZP103KCETFD is an air conditioning compressor designed for R410A refrigerant. It offers a cooling efficiency (EER) of 11.0 and a capacity range of 86,000 BTU. Operating on 3-phase power at 380-420V and 50Hz, this compressor has a nominal horsepower of 8.6 and an input power of 7,800 W, making it suitable for various air conditioning applications. Its displacement is 96.4 cc/Rev.

• Designed for R410A Refrigerant
• Cooling Efficiency (EER) of 11.0
• Capacity Range of 86,000 BTU

Product Highlights

This air conditioning compressor provides efficient cooling with R410A refrigerant, 86,000 BTU capacity, and 3-phase power operation.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP103KCETFD

Technical Specifications

• Refrigerant Type: R410A
• Cooling Efficiency EER: 11.0
• Capacity Range BTU: 86,000
• Input Voltage: 380-420V ; 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 8.6
• Capacity Wattage: 25,200
• Input Power Wattage: 7,800
• Current Amperage: 14.4
• COP Watt per Watt: 3.22
• Displacement cc/Rev: 96.4
• Oil Quantity Liters: 3.25
• Net Weight Kilograms: 61.2
• Locked Rotor Amperage: 111.0
• Sound Pressure at 1m dBA: 63.0
