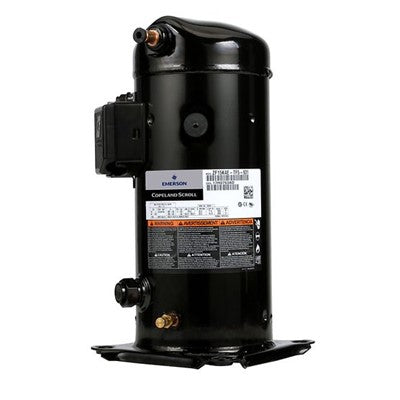

Copeland ZF11K4E-TFD-961 Hermetic Scroll Compressor

Product Description

The Copeland ZF11K4E-TFD-961 is a hermetic scroll compressor ideal for a wide range of refrigeration applications. This model uses advanced scroll technology for efficient operation and is suitable for various refrigerants including R-134a, R-22, and R-404A. Designed for three-phase power, it employs polyolester (POE) oil for effective lubrication.

• Hermetic scroll compressor design
• Compatible with multiple refrigerants
• Low sound and vibration levels

Product Highlights

This compressor offers axial and radial compliance, which enhances liquid handling and improves reliability.

Product Information

Standard Information

• Brand: Copeland
• Manufacturer Part Number: ZF11K4E-TFD-961

Technical Specifications

• Compressor Type: Scroll
• Application: Medium Temp, Low Temp
• Voltage: 460 VAC
• Phase: Three
• Horsepower: 3.5
• Oil Type: Polyolester (POE)
• Suction Line Size: 1.25 inches OD
• Discharge Connection Size: 1 inch OD
• Mounting Dimensions: 7.5 x 7.5 inches
• Height: 16.46 inches
• Weight: 64 lbs
• Rated Load Amps: 7.1/6.4
• Locked Rotor Amps (LRA): 44
• Evaporating Temperature: -40°F to 10°F (-40°C to -12.22°C)
• Return Gas Temperature: 65°F (18.33°C)
• Oil Charge Initial: 49 oz.
• Approvals: UL Recognized
• BTU Output: 11,000
• Country of Origin: USA
