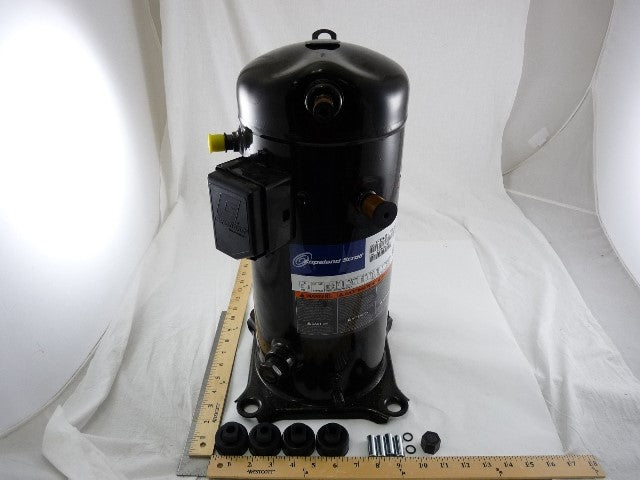

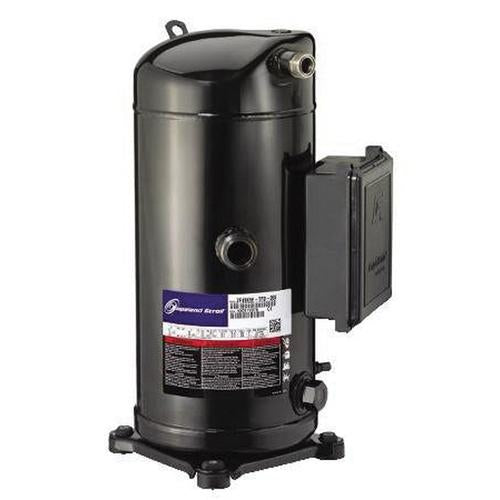

Copeland ZF06K4E-PFV-931 Aftermarket Hermetic Scroll Compressor 6000 BTU (208-230V) ZF06K4EPFV931

Product Description

Copeland ZF06K4E-PFV-931 is an aftermarket hermetic scroll compressor rated for 208-230 V single-phase operation and approximately 6,000 BTU output. The compressor uses scroll technology to reduce vibration and improve liquid handling via axial and radial compliance, and is compatible with polyolester (POE) and mineral oils. Electrical characteristics include rated load and locked rotor amp values for system sizing; mounting, oil charge, and fitting details are provided for installation.

• Scroll compressor, hermetic housing; designed for refrigeration and HVACR applications
• Electrical: 208-230 VAC, single phase, 50/60 Hz; RLA 12.2/13.6, LRA 61
• Oil: compatible with POE and mineral oils; initial oil charge 46 oz; suction 3/4" ODF, discharge 1/2" ODF

Product Highlights

Aftermarket Copeland scroll compressor, 6000 BTU (nominal), 208-230 V single-phase, compatible with multiple refrigerants and POE/mineral oils; internal inherent protection.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZF06K4E-PFV-931
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• MPN: ZF06K4E-PFV-931
• Compressor Type: Scroll
• Enclosure: Hermetic
• Input Voltage: 208-230 VAC
• Frequency: 50/60 Hz
• Phase: Single
• Power (BTU/h): 6000 BTU/h
• Rated Load Amps (RLA): 12.2, 13.6
• Locked Rotor Amps (LRA): 61
• Mass Flow: 156 lbs/hr; 96 lbs/hr
• Evaporating Temperature Range: -40°F to 10°F
• Refrigerant Compatibility: Various (including R-22, R-134A, R-404A, R-407A/C/F, R-507)
• Oil Type: Polyolester (POE), Mineral (MO)
• Initial Oil Charge: 46 oz
• Oil Recharge: 34 oz
• Suction Line Size (OD): 3/4"
• Discharge Line Size (OD): 1/2"
• Suction Line Fitting Type: Sweat or Braze
• Return Gas Temperature: 65°F
• Dimensions (L x W x H): 7.5 in x 7.5 in x 15.27 in
• Mounting Dimensions: 7.5 in x 7.5 in
• Weight: 62 lbs
• Package Weight: 65.7 lbs
• Protection: Internal inherent protection - use with protector and contactor
• Crankcase Heater (CCH): Yes
• Prop 65: Yes
• UL Listed: No
• Country of Origin: USA
• OPT Code: ZF06K4EPFV931
