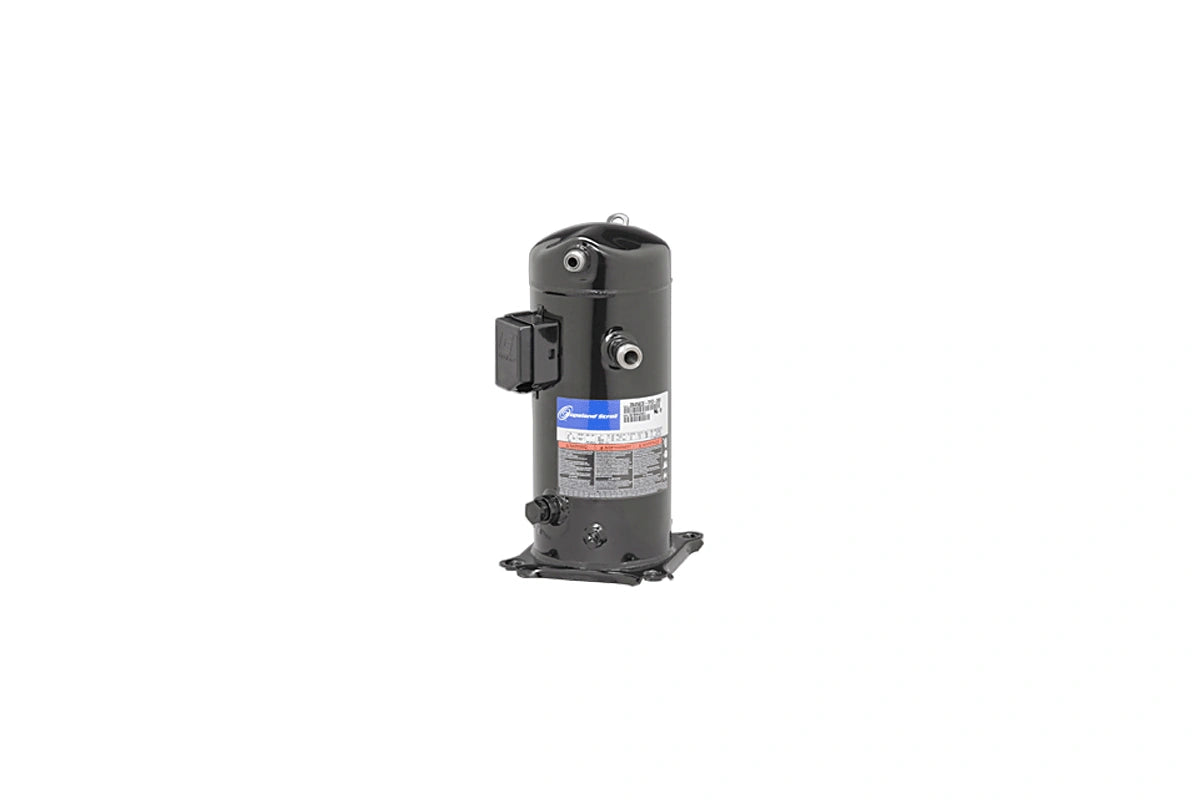

Copeland ZB30KCE-TFD-965 Scroll Compressor 460V Three-Phase

Product Description

The Copeland ZB30KCE-TFD-965 is a reliable scroll compressor ideal for HVACR applications. It operates efficiently on 460V three-phase power and is suitable for both high and medium temperature tasks. This compressor supports various refrigerants including R134a, R404A, R407A, R407C, R407F, R448A, R449A, and R507, making it versatile for different cooling systems.

• Operates using refrigerants like R134a and R404A.
• Designed for high efficiency with fewer moving parts.
• Capable of handling axial and radial loads effectively.

Product Highlights

This compressor ensures reliable performance with its advanced scroll technology.

Product Information

Standard Information

• Brand: Copeland
• Various Applications: High Temp, Medium Temp

Technical Specifications

• MPN: ZB30KCE-TFD-965
• Refrigerants: R134a, R404A, R407A, R407C, R407F, R448A, R449A, R507
• Voltage: 460 VAC
• Phase: Three
• Horsepower: 4
• Displacement (CFH): 497.7786
• Connection Suction (Inches): 1 1/4 RL
• Connection Discharge (Inches): 1 RL
• Rated Load Amps: 7.5
• Locked Rotor Amps (LRA): 47.5
• Oil Type: Polyolester (POE)
• Oil Charge Initial (oz.): 64
• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Suction Line Size (OD): 7/8
• Mounting Dimensions (Inches): 7.5 x 7.5 x 17.98
• Height (Inches): 18
• Weight (lbs): 78
• Country of Origin: US
• BTU Output: 25,100
• Minimum Circuit Ampacity (MCA): 7.4
• Overload Type: Internal
• Cycle/Hertz: 50/60 Hz
