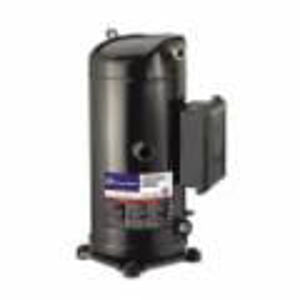

Copeland ZB15KCE-TF5-930 Medium Temperature Scroll Compressor 14600 BTU/hr 2 HP R-404A

Product Description

The Copeland ZB15KCE-TF5-930 is a medium temperature scroll compressor with a cooling capacity of fourteen thousand six hundred BTU/hr. This unit operates at two horsepower and uses R-404A refrigerant. It is suitable for applications requiring a voltage rating of two hundred to two hundred thirty volts and runs at sixty hertz with three-phase power. The compressor has a high energy efficiency rating of 6.2 EER.

• Cooling capacity: 14600 BTU/hr
• Operating voltage: 200 - 230 volts
• Dimensions: 9-1/2 inch L x 9-1/2 inch W x 15.04 inch H

Product Highlights

Designed for air conditioning applications, this compressor offers low sound levels and reliable operation.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZB15KCE-TF5-930

Technical Specifications

• Type: Medium Temperature
• Cooling Capacity: 14600 BTU/hr
• Power Rating: 2 HP
• Voltage Rating: 200 - 230 V, 60 Hz, 3 Phase
• Amperage Rating: 7.1 A
• Compressor Oil: POE
• Suction Line Size: 3/4 Inch ODF
• Discharge Line Size: 1/2 Inch ODF
• Sound Level: 68 dBA
