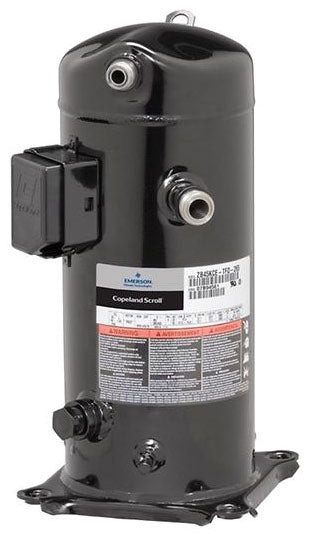

Copeland ZB15KCE-PFV-930 Aftermarket Hermetic Scroll Compressor 208-230/1/60

Product Description

The COPELAND ZB15KCE-PFV-930 is an aftermarket hermetic scroll compressor designed for HVACR applications. This compressor features scroll technology known for its superior efficiency and proven reliability. It operates on 200/208-230 VAC voltage and is suitable for use with refrigerants R-22, R-404A, R-407A, R-407C, R-410A, and R-407F.

• Superior efficiency
• Proven reliability
• Ease of installation

Product Highlights

This Copeland scroll compressor is engineered for optimum performance and is easy to service due to its compact size and simple design.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZB15KCE-PFV-930
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• MPN: ZB15KCE-PFV-930
• Amps: 10.4-11.4
• BTU Output: 14900-23200
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Cycle/Hertz: 50/60 Hz
• Discharge Connection Type: Stub
• Evaporating Temperature: -40°F to 10°F (-40°C to -12.22°C), 45°F
• Height: 14.56
• Length: 9.5
• Mass Flow (lbs/hr): 314 lbs./hr.; 525 lbs./hr.
• Mounting Dimensions: 7.5" x 7.5" x 15.27"
• Oil Charge Initial (oz.): 46
• Oil Type: Mineral (MO), Polyolester (POE)
• OPT Code: ZB15KCEPFV930
• Phase: Single
• Prop 65: No
• Protection: Internal Inherent Protection - One Protector Use with Contactor (Single or Three Phase)
• Rated Load Amps (RLA): 14.1, 15.7
• Refrigerant: R-22; R-404A; R-407A; R-407C; R-410A; R-407F
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 3/4"
• UL Listed: Yes
• Voltage: 200/208-230 VAC
• Width: 9.5
• Country of Origin: USA
• Power Rating: 2 hp
• Cooling Capacity: 14900 BtuH
• Application: Medium Temperature
• EER Rating: 6.6
• Sound Level: 68 dBA
• Discharge Line Size: 1/2 Inch ODF
